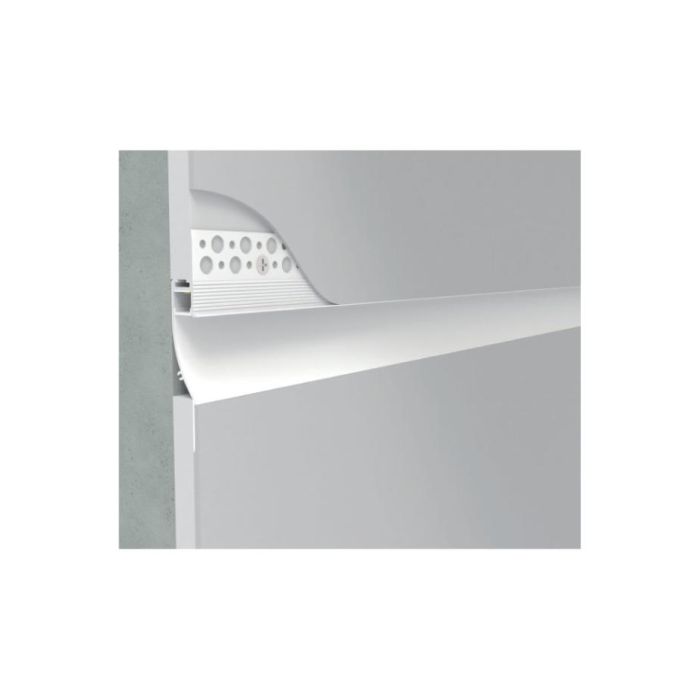

The Wall Wash Recessed Lighting Channel With Flange can be recessed into 1/2“ drywall for the wall washer lighting for indoor
lighting projects. The inner width is 10.3mm and allows the max-width of the LED Strip to be 10mm, recommend installing the
24V COB LED Strips to create a seamless linear lighting effect, with no dark areas and light dots. The aluminum channel can
also work as a heat sinker for better heat dissipation. There are three types of connectors available, and you can choose the
90°, 90° Vertical, and 180° connectors to reconnect the LED Lighting Channels for your projects. There is only one type of
diffuser available, the PC diffused cover, which is made of brand-imported material, anti-yellowing, perfect light distribution,
and smooth light output. The Wall Washing Channels are made of 6063-T5 extruded aluminum material with an anodized
surface treatment, and there are three colors available. The default color is white, silver, and black colors available too.
The standard length is 1M and 2M and can be cut to any length for your project and custom length is available.
Features:
Model: ALP186
Material: 6063-T5 Extruded Aluminum
Surface Treatment: Anodized
Size: 90.8*14.8mm(H*W)
Colors: White, Silver(Default), Black
Standard Length: 1M
Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
Custom Lengths Available: YES
Diffusers: PC Diffused Cover
Inner Width: 10.3mm
Max Width Of LED Strips: 10mm
Max Power: 15W/M
Beam Angle: 100°
Tolerance: ±1%
IP Rate: IP20 Non-waterproof
End Caps With Wire Holes Included
90°, 90° Vertical And 180° Connectors Sold Separately
Installation: Recessed Into 1/2" Drywall(Gypsum/Plasterboard)

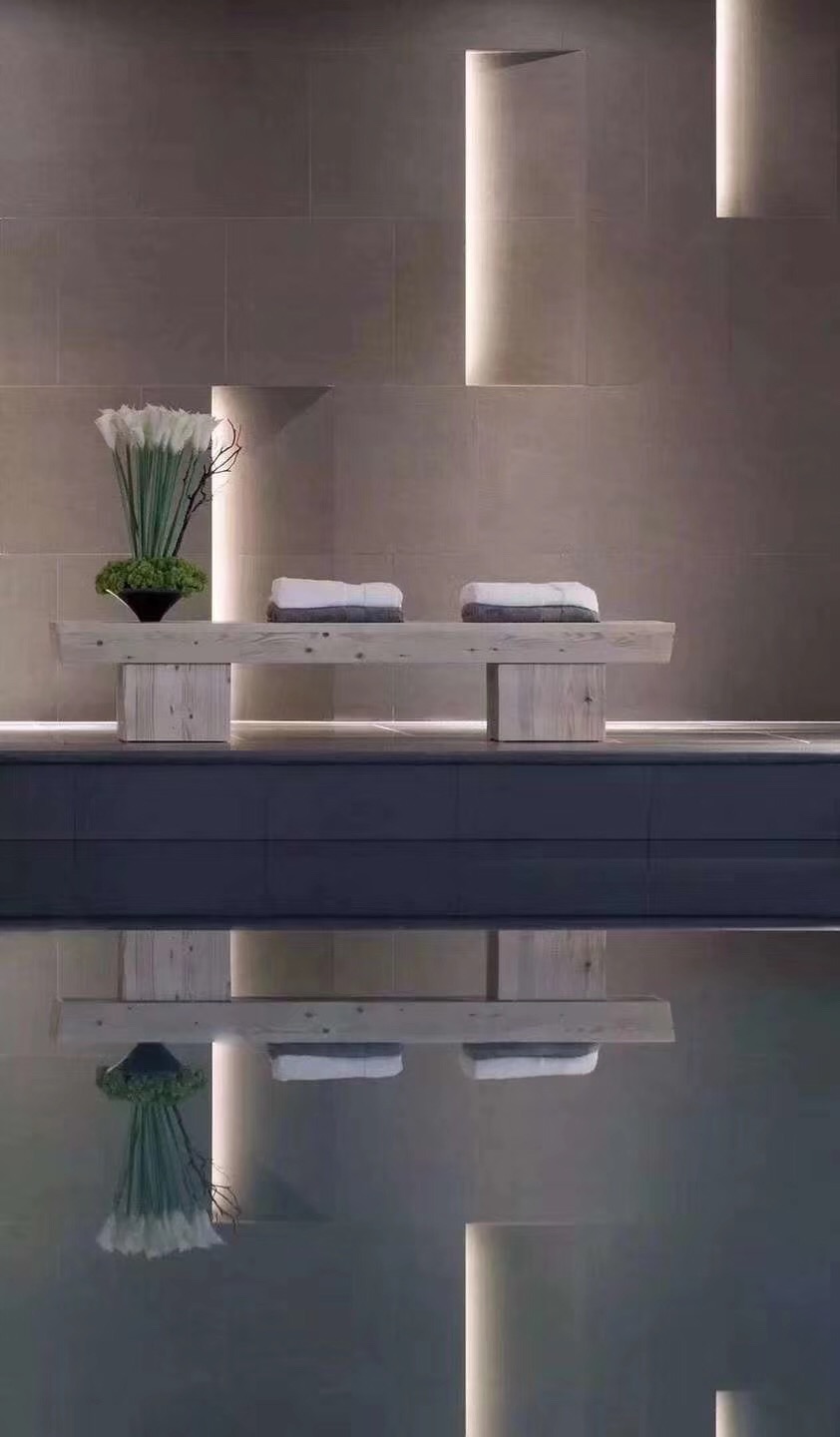

Applications: Wall Washing Lighting
5 Years Warranty
Includes:
1 set of Wall Wash Light Channel With Flange
End Caps
CE and RoHS approved
