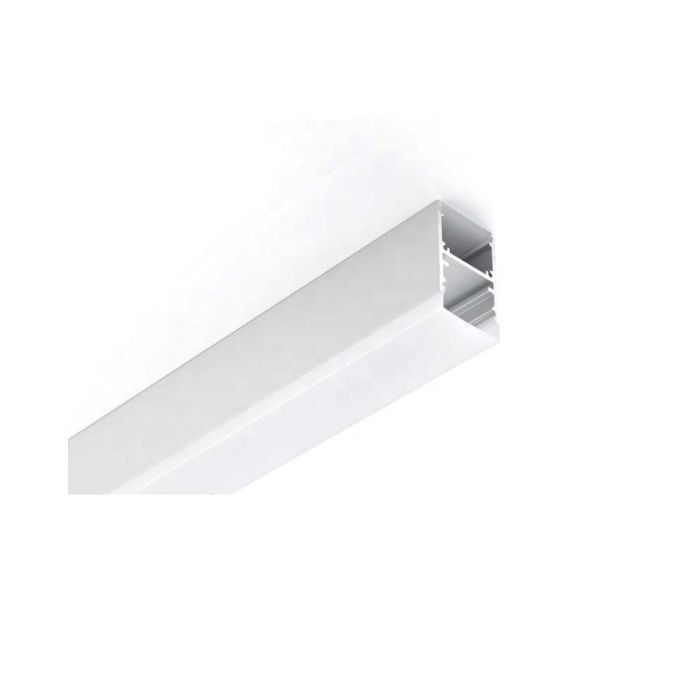

The 1-inch Extruded Aluminum LED Housing with up-and-down lighting design is designed to provide a durable and stylish
lighting solution for both direct and indirect lighting applications. Made of 6063-T5 aluminum alloy material with anodized
silver surface treatment, anti-oxidation resistance, provides a long-lasting, energy-efficient illumination solution, and a longer
lifespan than other similar products. The standard length is 1M and 2M and can be cut to any length fit for your projects.
There is only one type of diffuser available: the PC diffused cover, which is made of brand-stable material, anti-yellowing,
designed to evenly disperse light from Strip Lights, making it ideal for both up and down lighting applications. The inner
width upward is 17.4mm and downward is 16.1mm, which allows the max width of Strip Lights to be 17mm and 16mm,
recommend adding the high-density COB Strip Lights as the light source, no visible light dots and dark areas. The aluminum
base can be worked as a heat sinker for better heat dissipation. End caps and suspension wire kits are included, and easy
to mount on the ceilings for pendant lighting in residential and business places.
Features:
Model: ALP108
Material: 6063-T5 Aluminum Alloy
Surface Treatment: Silver Anodized
Colors: Silver, White, Black
Size:42*25.4mm
Inner Width: 16.1mm And 17.4mm
Allow The Max Width Of Strip Lights To Be 17mm
Max Power: 25W/Meter
Standard Length: 1Meter
Other Lengths Available: 1.5Meter, 2Meter, 2.5Meter
Custom Length Available: YES
Diffuser: PC Diffused Cover
Installation; Pendant
Applications: Office, Kitchen, Hotel, Stores
End Caps With Wire Holes, Hanging Clips, And Suspension Wires Included
5 Years Warranty
Shipping Method: By Express/By Sea(Send Inquiry)
Includes:
1 set of Extruded Aluminum LED Housing
End Caps
Hanging Clips
Suspension Wire Kits
CE and RoHS approved
