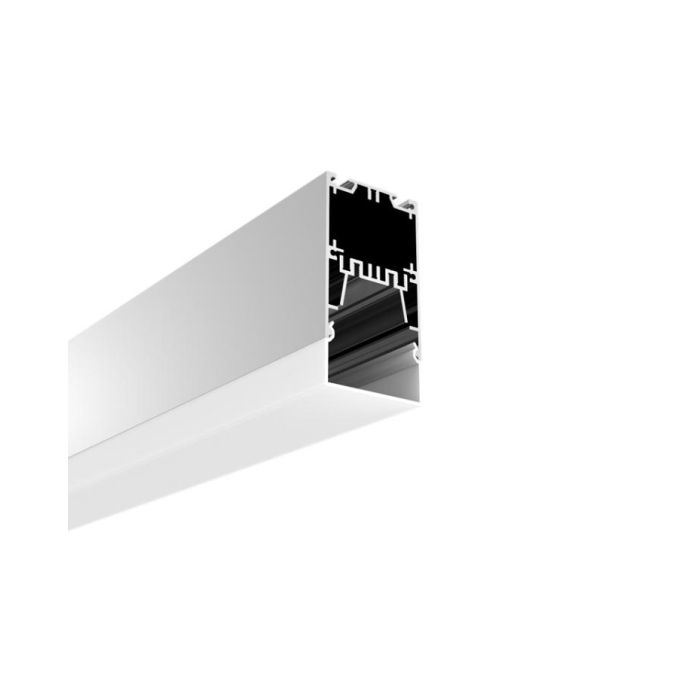

The 2-inch Pendant LED Strip Light Channel and Diffuser has a 20mm dropped lens for a wide view angle and seamless light
output without light dots. It comes with suspension wire kits that allow hanging on the ceiling for interior linear lighting. It can
be used as architectural Lighting in homes, offices, restaurants, supermarkets, hotels, etc. The LED Diffuser Channels are made
of 6063-T5 aluminum material with anodized surface treatment, anti-oxidation resistance, and a longer lifespan. There are three
colors available: silver, white and black. The standard length is 1M and 2M and can be cut to any length, and custom lengths are
available. Only one type of diffuser is available: the 20mm dropped covers, which are made of imported brand material, anti-yellowing,
and soft light output. The inner width is 27.4mm and allows the max-width of LED Light to be 26mm, and you can install Rigid LED Strips,
Rigid LED Modules, or Flexible LED Tapes as the light source. The Aluminum Channels can be used as heat sinkers for better heat dissipation.
The 90°, 90° vertical, and 180° Connectors are sold separately, and you can use them to reconnect the LED Light Channels. Metal clips and steel
wires are included.
Features:
Model: ALP5075-RD
Material: 6063-T5 Aluminum
Size: 50*95mm(W*H)
Surface Treatment: Anodized
Colors: Silver(Default), White, Black
Standard Length: 1M
Other Lengths Available: 1.5M, 2M, 2.5M
Custom Length Available: YES
Inner Width: 27.4mm
Max Width Of LED Strips: 26mm
Max Power: 35W/M
Beam Angle: 100°
IP Rate: IP20 Non-waterproof
Tolerance: ±1%
180°, 90° And 90° Vertical Connectors Sold Separately
End Caps And Steel Wires Included
Installation: Pendant/Surface Mounted
5 Years Warranty
Includes:
1 set of LED Strip Light Channel And Diffuser
End Caps
Inside Clips
Stainless Clips
Steel Wires
CE and RoHS approved
