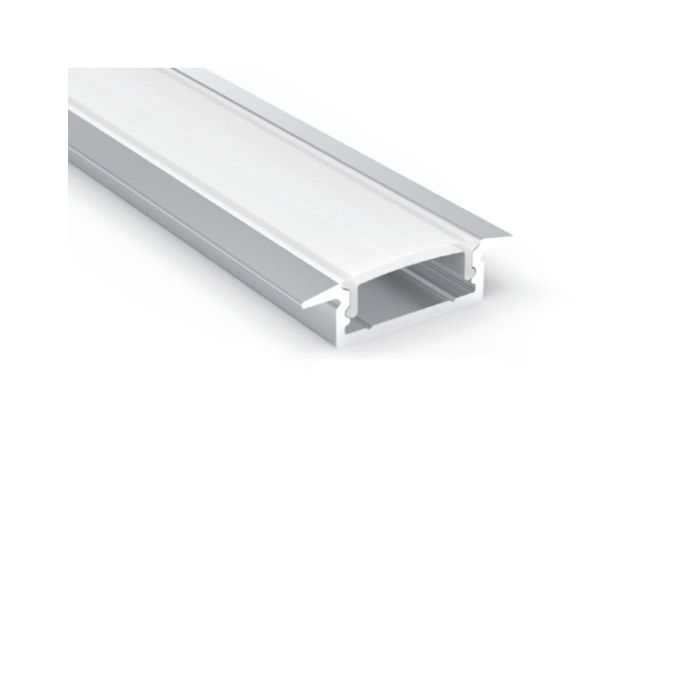

The LED Light Profiles with flange, the deep only 7mm, which can be recessed into the wall for creating a sleek and modern look in any space.
The LED Lighting Profiles are made of 6063-T5 extruded aluminum material with anodized surface treatment, anti-oxidation resistance, and
a longer lifespan than other similar products. There are three colors available: silver, white and black. The standard length is 1M and 2M, and
custom length is available. There are five types of diffusers available, all of them are made of imported brand material, anti-yellowing, and
perfect lighting distribution. The inner width is 15.2mm and can work with SMD LED Light Strips and COB LED Tapes, the max width of LED
Strips is 15mm, and the Aluminum Base can be used as a heat sinker for better heat dissipation, which will extend the lifespan of the LED
Lights. End caps with holes and without holes included, easy to connect the LED Light to a LED Driver to light up.
Features:
Model: ALP147
Material: 6063-T5 Extruded Aluminum
Surface Treatment: Anodized
Size: 18.5*7mm(W*H)
Colors: Silver(Default), White, Black
Standard Length: 1M
Other Lengths Available: 1.5M, 2M
Custom Length Available: YES
Diffusers: PC Diffused Cover, PC Semi-clear Cover, PC Clear Cover, PC Frosted Cover, Prismatic Cover
Inner Width: 15.2mm
Max LED Strip Width: 15mm
Max Power: 15W/M
Beam Angle: 100°
Tolerance: ±1%
IP Rating: IP20 Non-waterproof
Installation: Recessed
5 Years Warranty
Includes:
1 set of LED Light Profile With Diffuser
End Caps(With Hole/Without Hole)
CE and RoHS approved
