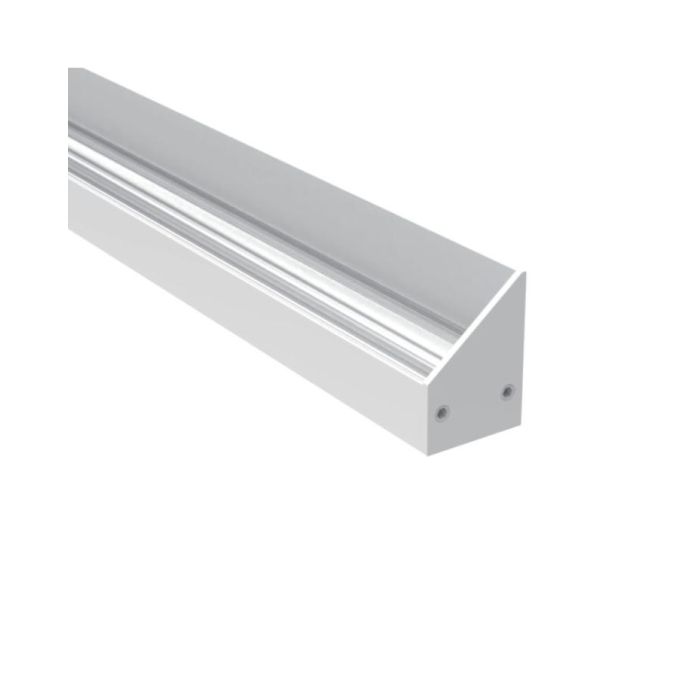

Check the Curving LED Wall Wash Channels, which can be mounted on the ceiling for wall washer lighting to provide
targeted illumination in a specific area. The standard length is 1M and 2M and can be cut to any length, and custom
lengths are available. Wall Washer Channels are made of 6063-t5 extruded aluminum material and with anodized
surface treatment, anti-oxidation resistance, and a longer lifespan. Three colors are available: white, silver, and black
colors. The inner width is 10.3mm, allowing the max-width of LED Strips to be 10mm. Easy to install the Flexible LED
Strips inside, and the Aluminum Base can be worked as a heat sinker for better heat dissipation. Connect to a Light
Driver to light up or a LED Dimmer to adjust the brightness freely. There is only one type of diffuser available, the
asymmetric lens, which is made of brand-imported material, anti-yellowing, and perfect light distribution. The metal
mounting clips are included, and 90° and 180° connectors are sold separately, you can use them to reconnect the LED
Wall Washing Channels for your project.
Features:
Model: ALP183
Material: 6063-T5 Extruded Aluminum
Surface Treatment: Anodized
Size: 28.3*40mm(W*H)
Colors: White(Default), Black, Silver
Standard Length: 1M
Other Lengths Available: 1.5M, 2M, 2.5M, 3M, And Max 6M
Custom Lengths Available: YES
Inner Width: 10.3mm
Max Width Of LED Strips: 10mm
Max Power: 18W/M
Diffusers: Asymmetric Lens
Beam Angle: 100°
Tolerance: ±1%
IP Rate: IP20 Non-waterproof
Metal End Caps Included
Spring Clips Sold Separately
90° And 180° Connectors Sold Separately
5 Years Warranty
Includes:
1 set of Curve LED Wall Wash Channel With Lens
End Caps
Metal Mounting Clips
CE and RoHS approved
