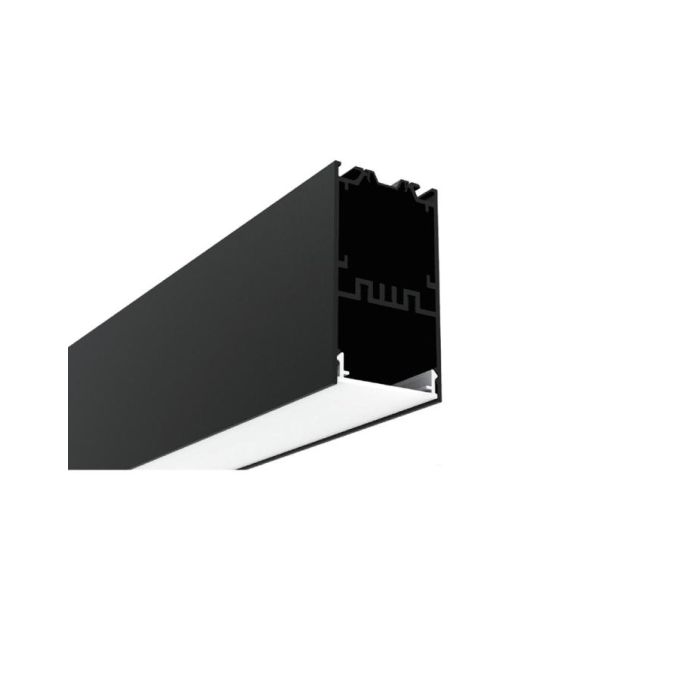

The LED Strip U Channel for an indoor linear lighting project is a great way to add a modern touch to any space, can combine the
various beam angle reflectors, covers, and diffusers for lighting design. Made of 6063-T5 aluminum alloy material with black anodized
surface treatment, anti-oxidation resistance, and better heat dissipation for the LED Lights, the LED Strip Channel has a longer lifespan
than other similar products. The standard length is 1M and the max length can take 2.5M, and can be cut to any size, and support
customs length. The inner width is 18.5mm and allows the max width of LED Strips to be 18mm. There are three beam angle reflectors
available, 24°，38°, and 50°， the reflectors also can choose the various lens, 1 lens, 3 lenses, or 5 lenses. The suspension wires are
included, you can mount them on the ceiling and use them as the main lighting in the office. the connectors are optional, you can
purchase them separately for the lighting project.
Notes:
If you want to purchase the reflectors, please contact us.
Features:
Model: LS40
Material: 6063-T5 Aluminum Alloy
Surface Treatment: Black Anodized
Grade: 6000 Series
Shape: Square
Size: 75*41mm(W*H)
Standard Length: 1Meter
Other Lengths Available: 1.5Meter, 2Meter, 2.5Meter
Custom Length: YES
Reflectors Available: 1LED/3LED/5LED; 24°，38°，50°
Blind Cover/Prismatic Cover/PC Frosted Cover Optional
Inner Width: 18.5mm
Compatible With 2835, 5050 Flex LED Strips
Max Power: <25W/Meter
End Caps, Outside Clips, Safety Wires, And Suspension Wires Included
Tolerance: ±1%
Installation: Pendant/Suspended Mounted
3 Years Warranty
Includes:
1 set of LED Strip U Channel
End Caps
Outside Clips
Safety Wires
Suspension Wires
Reflectors(Optional)
PC Frosted Cover(Optional)
Prismatic Cover(Optional)
Blind Cover(Optional)
CE and RoHS approved
