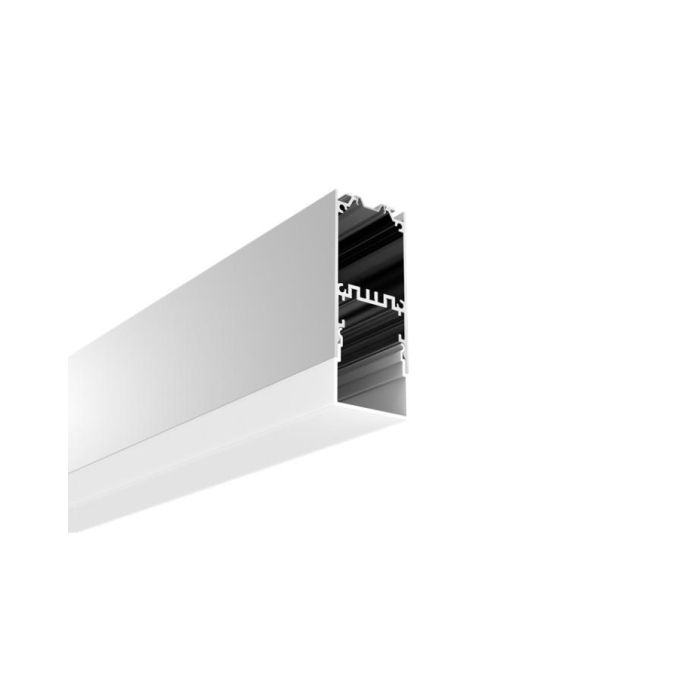

Check the Aluminum U Channel for LED Strips with a 20mm dropped diffuser for smooth light output and a wide view angle. It comes with
suspension wire kits that allow hanging on the ceiling, They can be used as commercial linear lighting in your offices, restaurants, hotels,
shopping malls, etc. The U Shape LED Light Channel Diffusers are made of 6063-T5 aluminum material, with anodized surface treatment,
anti-oxidation resistance, and a longer lifespan than similar products. There are three colors available: silver, white and black. The standard
length is 1M and 2M, and custom lengths are available. Only one type of diffuser is available: the PC diffused cover, which is made of brand-imported
material, anti-yellowing, and perfect light distribution. The inner width is 27.5mm and allows the max-width of LED Strips to be 18.5mm,
You can use Flexible LED Strips and COB LED Tapes as the light source, and Aluminum Channels can be used as a heat sinker for better
heat dissipation. Metal clips and suspension wires are included to allow the pendant installation. Three types of LED Connectors are available:
90°, 90° Vertical, and 180° Connectors sold separately, and you can use them to reconnect the LED Channels.
Features:

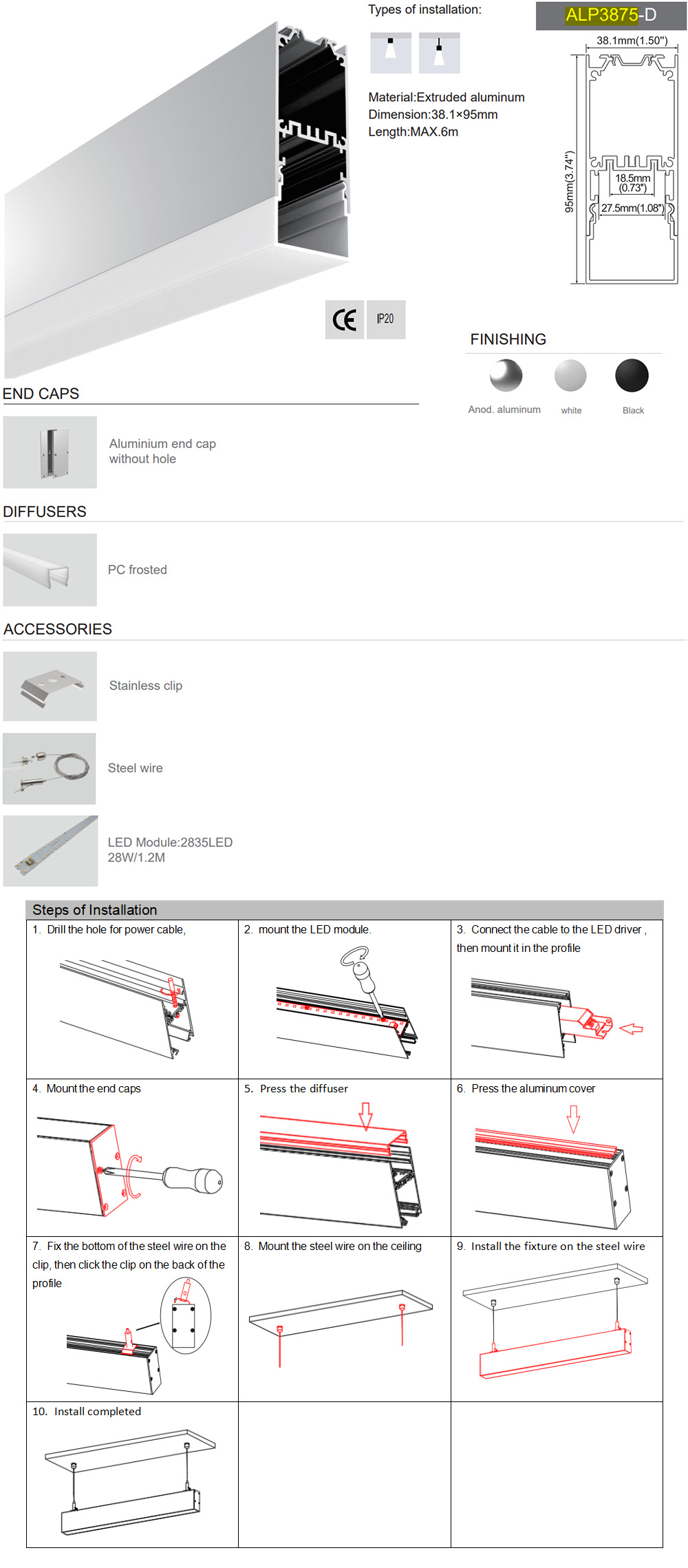

Model: ALP3875-D
Material: 6063-T5 Aluminum
Size: 95*38.1mm(H*W)
Surface Treatment: Anodized
Colors: Silver
Standard Length: 1M
Other Lengths Available: 1.5M, 2M
Custom Length Available: YES
Diffuser: PC Diffused Cover
Max Width Of LED Strips: 18.5mm
Max Power: 30W/M
Beam Angle: 100°
Tolerance: ±1%
IP Rate: IP20 Non-waterproof
End Caps, Metal Clips And Suspension Wires Included
180°, 90° And 90° Vertical LED Connectors Sold Separately
Installation: Surface Mounted / Pendant
5 Years Warranty
Includes:
1 set of Aluminum U Channel With Dropped Diffuser
End Caps
Metal Clips
Suspension Wires
CE and RoHS approved
