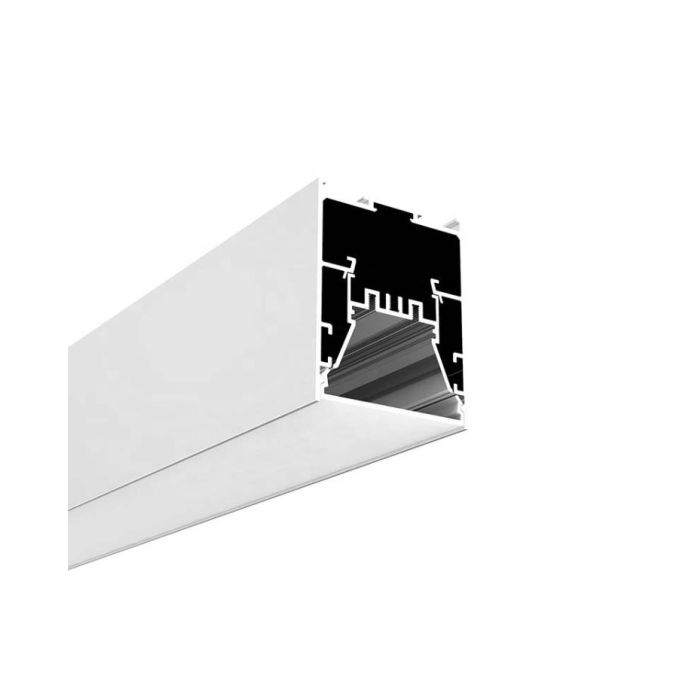

The Pendant LED Channel Diffuser with PC frosted lens is a great way to add a modern look to any space. The diffuser helps to conceal the
LED Lights, while the frosted lens creates a soft, even light. The LED Strip Channel Diffusers are made of 6063-T5 aluminum alloy with anodized
silver surface treatment, anti-oxidation resistance, and a longer lifespan than other similar LED Profiles. The PC frosted lens is included, made
of Japan-brand material with stable quality, anti-yellowing, perfect light distribution, and smooth light output. The standard length is 1M, and
the max length is 2.5M per piece, it can be cut to any length to fit your space. The inner width is 18.5mm and allows the max width to be 18mm.
I recommend adding high-density COB Strip Lights as the light source. The aluminum Channels can be used as heat sinkers for better heat dissipation,
which allows the LED Light Modules to have a longer lifespan. The Alu End Caps, metal clips, and suspension wires allow the pendant or surface-mounted
installation in homes, shops, offices, hospitals, supermarkets, etc. The "L", "T" and "+" shape connectors were sold separately.
Features:
Model: ALP6380
Size: 63*80mm
Material: 6063-T5 Aluminum Alloy
Surface Treatment: Silver Anodized
Colors: Silver, White, Black
Diffuser: PC Frosted Opal Diffuser
Standard Length: 1Meter
Other Lengths Available: 0.5Meter, 1.5Meter, 2Meter, 2.5Meter
Custom Length Available: YES
Inner Width: 18.5mm
Compatible LED Strips Or 140mm/280mm/560mm Constant Current LED Modules
Max Power: 45W/Meter
"L" "T" "+" Connectors Sold Separately
Installation: Pendant/Surface Mounted
Applications: Office, Shop, Retail, Hotel, etc
5 Years Warranty
Includes:
1 set of LED Channel Diffuser
End Caps
Metal Clips
Suspension Wires
CE and RoHS approved
