Welcome to use the Constant Voltage DMX512 Deloped coder which is deveonly for constant voltage LED lamps.
It adopted advanced micro-computer control technology to transfer standard DMX512/1990 signal to PWM signal.
One channel output, max 10A output each channel, 4096 Grey Scales. It can be used as DMX512 master or as DMX
decoder to connect computerized digital output console with analog silicon case and controls LED lamps of architecture and lighting.
Specifications:
Model: 1CH Constant Voltage decoder
Input voltage: DC12V-DC24V
Max load current: 1CH×10A
Max Output Power: 120W(12V)/240W(24V)
Grey Scale: 4096 levels×1
Input Signal: DMX512/1990
Output Signal: Constant Voltage PWM
Decode Channel: 1CH
DMX512 socket : Terminal Block
Dimension: L111×W46×H66(mm)
Weight (G.W) : 135g
Feature function:
Automatically adapts input voltage DC12V-24V.
Input standard DMX512 signal; 3-digital-display shows DMX address code.
1 channels output; 4096 grey scales each; logarithmic dimming; lamplight soft & stable without strobe flash.
DMX Master mode, slave mode available.
Built-in 8 color changing modes and 10 speed scales.
Indicator of the DMX512 signal receiving status.
Power loss memory function.
Wrong wiring protection at DMX port, over current protection and short circuit protection.
The DIN rail style design facilitates the installation of large-scale projects.
Package Included:

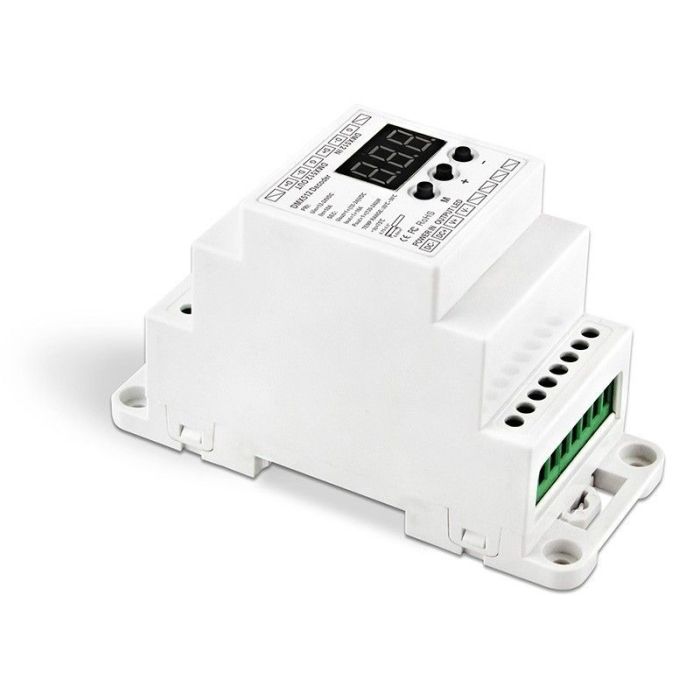

1 Piece of BC-831-DIN Bincolor DMX512 DIN Rail Decoder Digital Tube Display Led Controller
CE and RoHS approved
