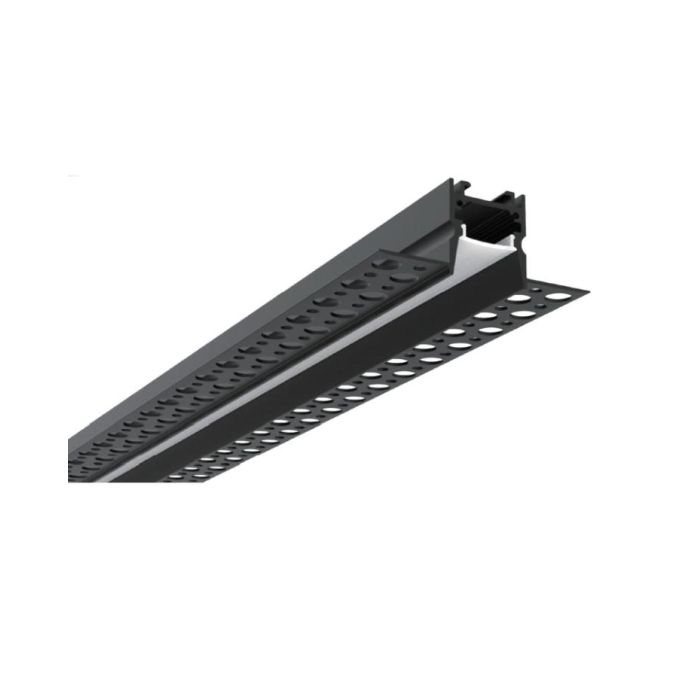

The Black Recessed Channels for LED Strip Lighting, which with anti-glare design, with a deeply anti-glare design
to prevent glare effectively and offer you healthy ambient lighting in residential and business. The flanges with a
honeycomb hole design, are easy to be recessed in drywall on ceilings or walls. The Black LED Channels are made
of 6063-T5 extruded aluminum material and with anodized surface treatment, anti-oxidation resistance, and a longer
lifespan than other similar products. There are three colors available: black, white, and silver. The standard length is
1M and 2M, easy to cut to any length for your projects. There are three types of diffusers available: the PC diffused cover,
PC semi-clear cover, and prismatic cover, all of them are made of brand material, anti-yellowing, perfect light distribution,
and various light transmittance. The inner width is 13.4mm and allows the max-width of LED Strips to be 12mm, easy to
stick the LED Strips inside. The Aluminum Channels can be worked as a heat sinker for better heat dissipation. End caps
with wire holes included, easy to connect the LED Light to LED Driver to light up. 90°, 90° vertical, and 180° connectors are
sold separately, you can use them to reconnect the LED Recessed Channels for DIY shapes design.
Features:
Model: ALP177
Material: 6063-T5 Extruded Aluminum
Surface Treatment: Anodized
Size: 63*26.2mm(W*H)
Colors: Black(Default), White, Silver
Standard Length: 1M
Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
Custom Length Available: YES
Diffusers: PC Diffused Cover, PC Semi-clear Cover, Prismatic Cover
Inner Width: 13.4mm
Max Width Of LED Strips: 12mm
Max Power: 18W/M
Beam Angle: 100°
Tolerance: ±1%
IP Rating: IP20
End Caps With Wire Holes Included
90°, 90° Vertical And 180° Connectors Sold Separately
LED Strips, Dimmers And Power Supplies Sold Separately
Installation: Recessed Mounting
5 Years Warranty
Includes:
1 Set of Black Recessed Channel With Diffuser
End Caps (With Hole/Without Hole)
CE and RoHS approved
