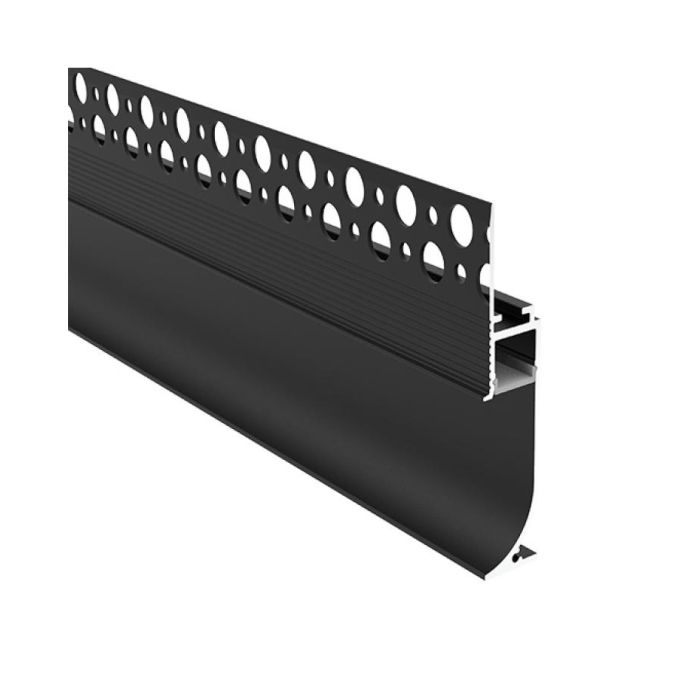

The Black Trimless Baseboard LED Lighting Channels provide a beautiful skirting lighting look. They have a reflective cove in
the profile, designed to allow lighting to shine indirect light onto the floor. The Baseboard Light Channel is made of 6063-T5
extruded aluminum material with anodized surface treatment, anti-oxidation resistance, and a longer lifespan than similar
products. There are three colors available: silver, white and black. The default color is black, the standard length is 2 meters,
custom lengths are available, the max Length can be 6M, and you can cut to any size for your projects. Only one type of diffuser
is available: PC diffused cover, which is made of brand-imported material, anti-yellowing, perfect light distribution, and smooth
light output. The inner width is 10.3mm, allowing the maximum width of LED tapes to be 10mm. Recommended using the high-density
COB LED Strips, NO visible light dots, and dark area. It can be used for Modern Kitchen Backlight for indoor lighting projects and is very
easy to install into the drywall. There are 90° and 180° connectors sold separately, and you can use them to reconnect the Black Baseboard
LED Profiles. There are inside connectors and outside connectors available for the corner installation.
Quick Links:
LED Channel Corner Connectors (Inside And Outside)
Features:
Model: SK1270
Material: 6063-T5 Extruded Aluminum
Surface Treatment: Anodized
Size: 70*14mm(H*W)
Colors: Silver, White, Black(Default)
Diffuser: PC Diffused Cover
Standard Length: 1M
Other Lengths Available: 0.5M, 1.5M, 2M And Max 6M
Custom Length Available: YES
Inner Width: 10.3mm
Max Width Of LED Strips: 10mm
Compatible With 2.7mm, 3mm, 4mm, 5mm, 8mm and 10mm COB LED Strips
Max Power: 15W/M
Beam Angle: 60°
IP Rate: IP20 Non-Waterproof
Tolerance: ±1%
90° and 180° Connectors Sold Separately
End Caps With Wire Holes Included
Installation: Recessed Into Drywall
Applications: Baseboard LED Lighting in Hallway, Cinemas, Theater, Hospital, Villa, Hotel, etc
5 Years Warranty
Includes:
1 Set of Baseboard Light Channel
End Caps With Hole/Without Hole
CE and RoHS approved
