The Cabinet Toe Kick Moulding Lighting Profiles allow the creation of a beautiful linear lighting look along the foot line under the
cabinets and provide a sleek, modern look. There are three light space products available: 5mm, 10mm, and 18mm. The inner width
is 10.5mm and allows the max width of LED Strips to be 10mm. Recommended using the dotless COB LED Strips as the light source;
you can use them to light up the floor areas. LED Cabinet Kickboard Channels are made of 6063-T5 aluminum alloy with silver anodized
surface treatment, anti-oxidation resistance, and a longer lifespan than similar products. The standard length is 1M and 2M, and you can
cut to any length for your project. The 90° and 180° connectors are sold separately, and you can use them to reconnect the Kitchen Cabinet
Toe Kick Profiles together. There is only one type of diffuser available: the PC Diffused Cover, which is made of brand-stable material,
anti-yellowing, perfect light distribution, and even light output. End caps with wire holes included, easy to connect the LED Strips to
12V LED Driver to light up. They can be used as a heat sinker for better heat dissipation. They provide both functionality and aesthetics,
enhancing the overall look of your cabinets.
Features:

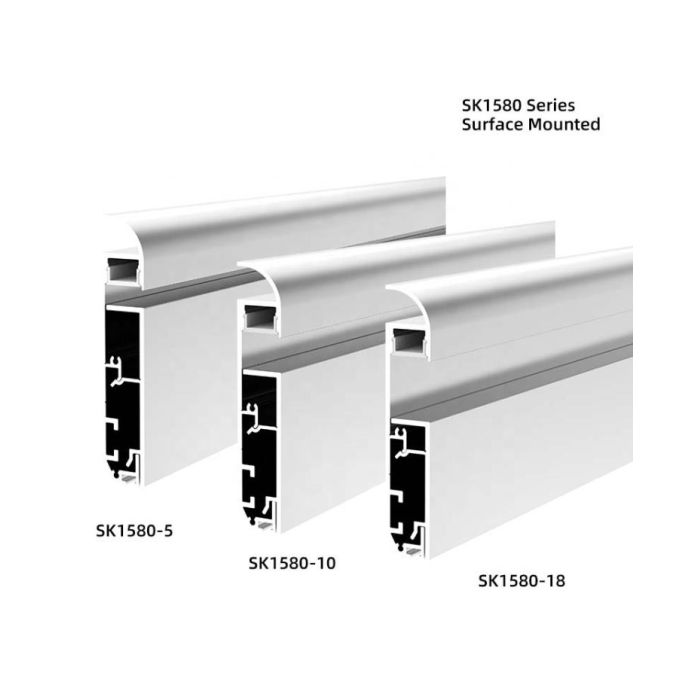

Model: SK1580
Material: 6063-T5 Aluminum Alloy
Surface Treatment: Silver Anodized
Colors: Silver(Default), White, Black
Size: 80*15mm(H*W)
Inner Width: 10.5mm
Compatible With Single Row 10mm COB or SMD 5050 LED Strips
Max Power: <20W/M
Standard Length: 1M
Other Lengths Available: 2M
Custom Length Available: YES
Diffuser: PC Diffused Diffuser
Lighting Space Selectable: 5mm, 10mm, 18mm
90° And 180° Connectors Sold Separately
LED Strips, Controllers, and Transformers Sold Separately
Installation: Surface Mounted
Applications: Cabinet Toe Kick Lighting In Dining Room, Entryway, Basement, Laundry Room, Office, Living Room, Garage, Wet Bar, Attic, etc
End Caps With Wire Holes Included
5 Years Warranty
Includes:
1 set of Office Cabinet Toe Kick Light Profile
End Caps(With Wire Hole And Without Wire Hole)
CE and RoHS approved
