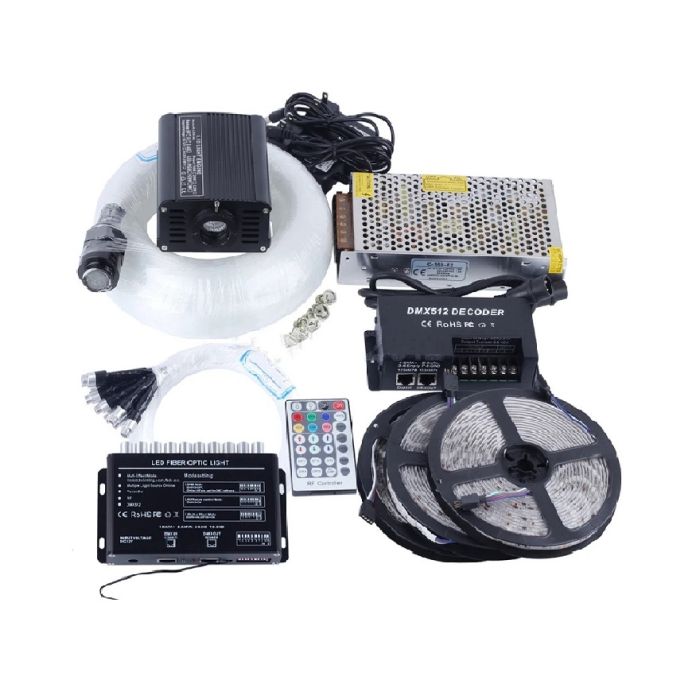

Package included:
1 x 4meters(0.75mm*250pcs+1.0mm*70pcs+1.5mm*15pcs) fiber optic cable
10 x 1.0mm*3pcs*4m optic fiber cable
1x DMX 16w RGBW light engine
1x 5w white shooting star engine
1x 28key RF remote controller
3 x 5meters 12V 300led RGB+W strip IP65 waterproof
1 x DMX512 RGBW decoder +1m DMX cable
1 x 12V 180W power supply
1 x 5pcs crystal
2 x Power adapter
2 x User Manual
Item Detail
Product video please click link : youtu.be/1vo5nMBPG-w ( Copy the link to the browser)
Parameter
Fiber optic cable include: 1x 4meters(0.75mm*250pcs+1.0mm*70pcs+1.5mm*15pcs)(star cable)
10x 3pcs*1.0mm*4meters(shooting star cable)
The fiber cable operation temperature:-50 centigrade- 75 centigrade
Work voltage: AC 110~265V 50/60Hz
Power:16W(fiber opitc engine) 5W(shooting star engine)
Light Color: RGBW (fiber opitc engine) White((shooting star engine)
Control mode:28key RF remote control or DMX512/1990 control
Output DMX:4 channels (RGBW)
Remoe control change mode:static13 color (Red ,Green,Blue,Yellow,Mixd white,Pure white,
Cyan,Purple+5 DIY color)&RGB light changing fade, jump,spark&Adjust the brightness or mode speed
Meteor effect: Each time you press the key, the meteor appear once. If you don't press the key,
meteor will across once per minute. Please leave message if you need to set the meteor across time base on your request.
Engine size: L105mm*W95mm*H55mm
Engine warranty:2 year
Lifetime: Over 50,000 hours
Weight: 3.7kg
We have EU / US / UK / AU standard plug, we default to send in accordance
with national standards and, if special needs, please leave a message.
Product Photo
Schematic for System Connection:
Plan one:DMX512 Console + DMX 512 fiber optic engine+DMX512 decoder + LED strip
Plan two:PC DMX512 Console + USB DMX controller + DMX 512 fiber optic engine+DMX512 decoder + LED strip
Plan three:RF remote + DMX 512 fiber optic engine+DMX512 decoder + LED strip
Plan four:DMX 512 fiber optic engine controller +DMX512 decoder + LED strip
3.built-in model
Scene Display
CE and RoHS approved
