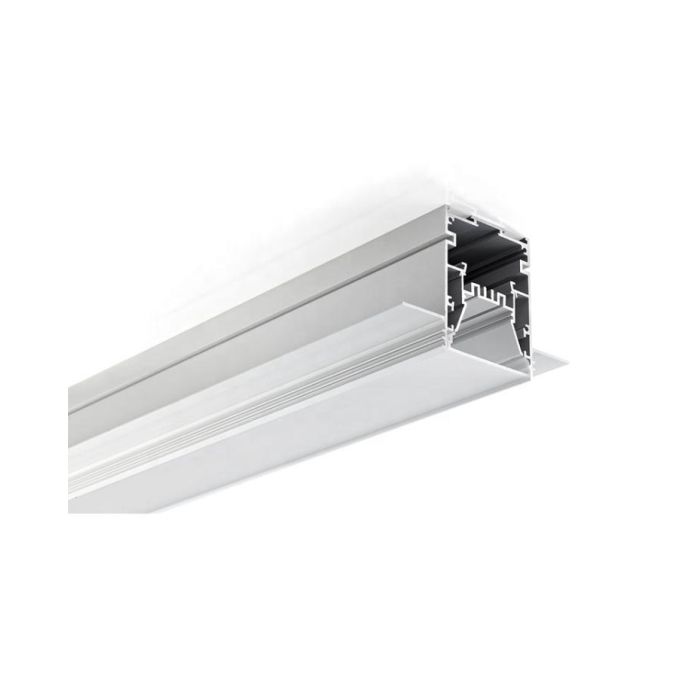

The Drywall LED Channel with PC Frosted Diffuser is an ideal solution for architectural lighting. This channel offers a low-profile and
aesthetically-pleasing design, allowing it to be integrated into any interior space for interior linear lighting. The inner width is 18.6mm
and allows the max width of LED Lights to be 18mm, compatible with 140mm, 280mm, or 560mm Rigid Constant Current LED Modules
or dotless COB LED Strips, the aluminum channels can be worked as heat sinkers for better heat dissipation, which will extend the lifespan
of LED Lights. The standard length is 1M and 2M, the max length is 2.5M, and cuttable, and you can cut to any length for your project.
Drywall Channels are made of 6063-T5 aluminum alloy material with silver anodized surface treatment, anti-oxidation resistance, and
a longer lifespan than other similar products. There is only one type of diffuser available: the PC frosted opal diffuser, which is made
of brand-stable material, anti-yellowing, evenly distributes light, and eliminates the LED hot spots.The diffuser also prevents glare and
provides uniform illumination. End caps and metal clips are included, allowing to flush mount installation on the ceiling, which can be
used in both residential and commercial applications, is a perfect way to create a modern lighting atmosphere in any space.
Features:
Model: ALP12083
Material: 6063-T5 Aluminum Alloy
Color: Silver(Default), White, Black
Surface Treatment: Silver Anodized
Size: 121*83mm(W*H)
Inner Width: 18.6mm
Compatible With 140mm/280mm/560mm Rigid Constant Current LED Modules
Max Power: <50W/Meter
Standard Length: 1Meter
Other Lengths Available: 0.5Meter, 1.5Meter, 2Meter, 2.5Meter
Custom Length Available: YES
Diffuser: PC Frosted Opal Diffuser
Installation: Drywall Recessed
Application: Architectural Lighting
End Caps With Wire Holes Included
Metal Clips Included
LED Strips, Controllers, And Transformers Sold Separately
5 Years Warranty
Includes:
1 Set of Drywall LED Channel
End Caps
Internal Clip
CE and RoHS approved
