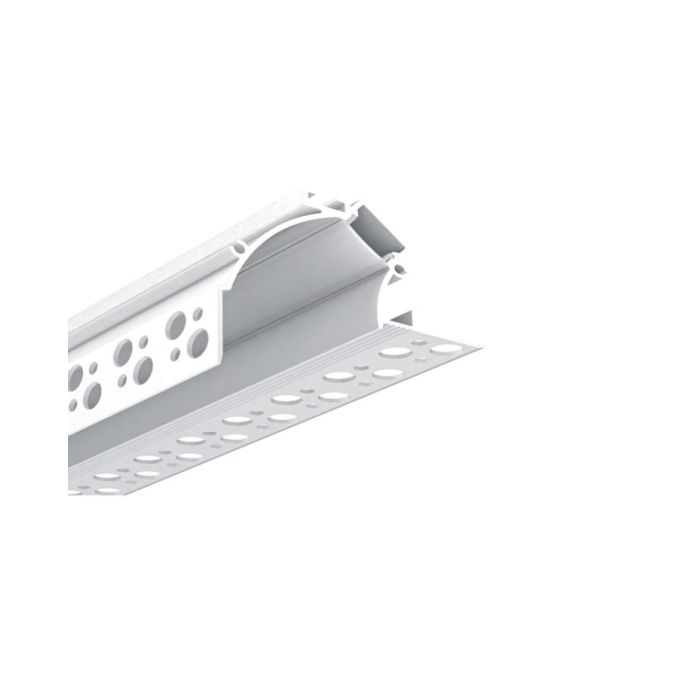

The Drywall LED Strip Opal Diffuser Profiles can be recessed into the wall and ceiling for wall washer lighting.
They are made of high-quality 6063-T5 aluminum material with anodized surface treatment, anti-oxidation resistance,
and a longer lifespan. Three colors are available: white, silver, and black. The standard length is 1M and max 6M; custom
lengths are available. Two types of Diffusers For LED Strips are available for different light transmissions: PC diffused
cover and PC semi-clear cover. Both are made of imported brand material, anti-yellowing, and perfect light distribution.
The inner width is 15mm and allows the max-width of Flexible LED Strips to be 15mm, and you can install double rows
of COB LED Strips or SMD LED Tapes inside. The Aluminum base can be worked as a heat sinker for better heat dissipation.
End caps with wire holes are included, and they are easy to connect to an LED Driver to light up or a Light Dimmer to adjust
the brightness. Three types of connectors are sold separately, you can use them to reconnect the LED Strip Profiles for your
projects to create a uniform line of light up to the desired length. LED Diffuser Profiles with a trimless design, the flanges with
holes can be recessed into the wall or ceiling with plasterboard structure. Three types of Connectors are available: 90°, 90° vertical,
and 180°, and you can use them to reconnect the Drywall LED Profiles for DIY shape design.
Features:
Model: ALP127-R
Material: 6063-T5 Aluminum
Surface Treatment: Anodized
Colors: Silver, Black, White(Default)
Size: 72.3*58.9mm(W*H)
Standard Length: 1M
Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
Custom Length Available: YES
Diffusers: PC Diffused Cover/PC Semi-Clear Cover
Inner Width: 15mm
Max Width Of LED Strips: 15mm
Max Power: 18W/M
Beam Angle: 100°
IP Rate: IP20 Non-waterproof
Tolerance: ±1%
End Caps With Wire Holes Included
180°, 90° And 90° Vertical Connectors Sold Separately
Strip Lights, Dimmers, And LED Drivers Sold Separately
Installation: Recessed
5 Years Warranty
Includes:
1 set of LED Strip Opal Diffuser Profile
End Caps(With Wire Holes And Without Wire Holes)
CE and RoHS approved
