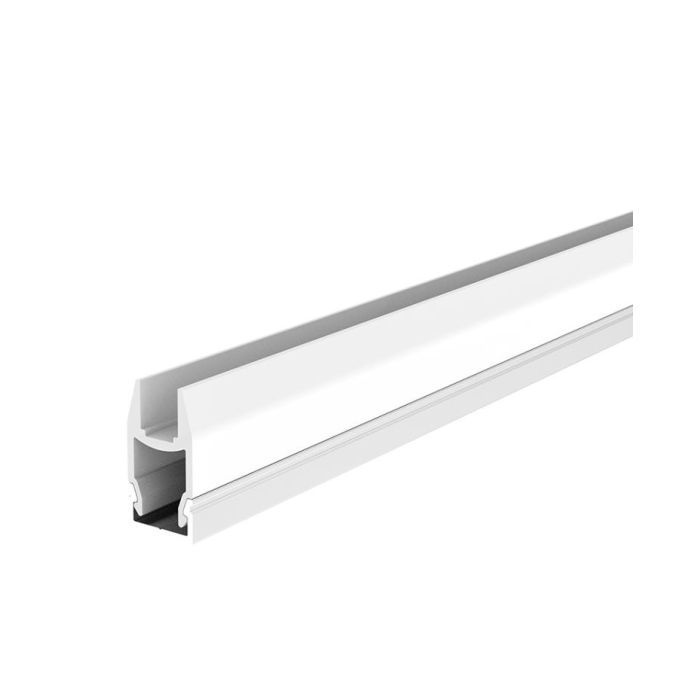

The Edge Lit LED Channels are designed for 8mm glass/acrylic cabinet shelf boards, and they're easy to install and perfect for
adding a modern and stylish touch to your cabinets. They can be recessed in the 8mm or 6mm Tempered Glass or Acrylic Board,
and you can use them for adding lights on shelf. They are made of 6063-T5 aluminum alloy material with silver anodized surface
treatment, anti-oxidation resistance, and a longer lifespan than similar products. The inner width is 11mm, allowing the max width
of LED Strips to be 11mm. Recommend adding high-density COB Tape Lights as the light source, with no light spots and dark areas,
to create seamless linear lighting. End caps with wire holes and without wire holes included are easy to connect to the Constant
Current Dimming LED Driver to light up. The standard length is 1M, and the max length can be 3 meters and cut to any size for your
project. There is only one type of diffuser available: the PC Diffused Cover, which is made of brand-stable material, anti-yellowing, helps
to diffuse the light, and protects the LED Tape from dust and dirt.
Features:
Model: ALP138
Material: Aluminum And PC
Surface Treatment: Silver Anodized
Colors: Silver(Default), White, Black
Standard Length: 1Meter
Other Lengths Available: 0.5M, 1.5M, 2M, 2.5M, 3M
Custom Length Available: YES
Inner Width: 11mm
Compatible With Single Row 3528 Or 5050 LED Strip Light
Max Power: <15W/M
Diffusers: PC Diffused Cover
Installation: Recess In 8mm/6mm Tempered Glass Or Acrylic Board
Applications: Cabinet Shelf Lighting
End Caps With Wire Hole Included
5 Years Warranty
Includes:
1 set of Aluminum LED Tape Light Channel
End Caps(With Wire Holes/Without Wire Holes)
CE and RoHS approved
