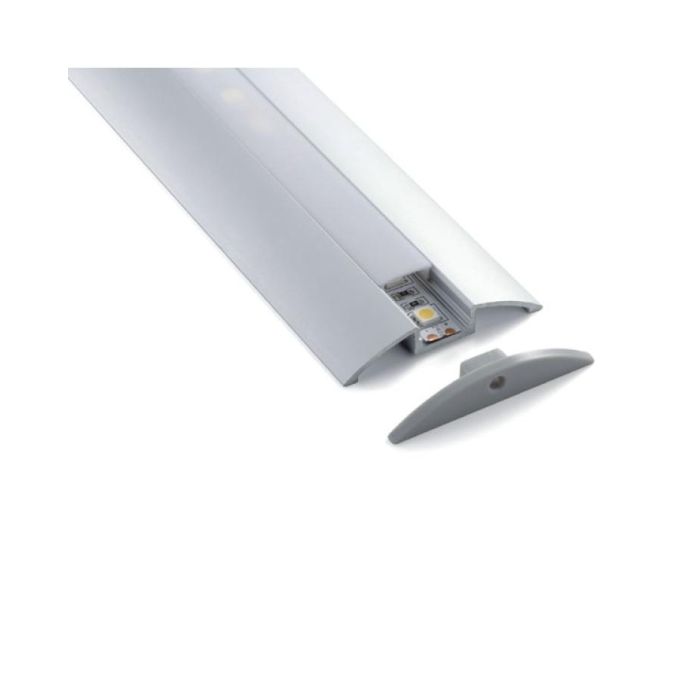

The Flat LED Tape Aluminium Profiles are perfect for Kitchen Under Cabinet Lighting, designed to provide a professional finish
to LED Tape installations by providing a sleek and attractive aluminum housing for the LED Tape. It's designed to be low profile
and slim, making it ideal for under-cabinet lighting as it can be discreetly installed. They are made of high-quality 60603-T5
aluminum alloy material with an anodized finish, anti-oxidation resistance, durability, and long-lasting. Six different types of
LED Strip Diffusers are available for the various lighting effects. You can choose the PMMA Opal Matte Cover, PMMA Semi-clear
Cover, PMMA Clear Cover, PC Semi-clear Cover, PC Clear Cover, and PC Diffused Cover, and the covers are made of brand
material with stable quality, anti-yellowing, and perfect light distribution. The standard length is 1M and 2M, the max length
can be 3 meters, and you can cut to any length you want. The inner width is 12.2mm, allowing the max width of Strip Lights
to be 12mm. Recommend adding a high-density SMD or COB Strip Lights as the light source, without visible light dots and
dark areas. The aluminum base can work as a heat sinker for better heat dissipation, extending the lifespan of LED Lighting.
Features:
Model: ALP021
Color: Silver
Material: Anodized Aluminum Alloy(6063-T5)
Surface Treatment: Anodized
Size: 56.7mm(W)*9.8mm(H）
Covers: PMMA Opal Matte Cover, PMMA Semi-Clear Cover, PMMA Clear Cover, PC Diffused Cover, PC Semi-clear Cover, PC Clear Cover
Standard Length: 1Meter
Other Lengths Available: 0.5Meter, 1.5Meter, 2Meter, 2.5Meter, 3Meter
Custom length Available: YES
Inner Width: 12.2mm
Allows The Max Width Of Strip Lights To Be 12mm
Recommend LED Strips: COB, 3528, 3030, 2835,5050,5730,5630
Max Power: <20W/M
Beam Angle: 100°
Installation: Surface Mounted
Applications: Under Cabinets, Wardrobes, Closets, Show Cases, etc
5 Years Warranty
Package:
1 set of Aluminium Profile LED With Diffuser
End Caps(With Wire Holes/Without Wire Holes）
CE and RoHS approved
