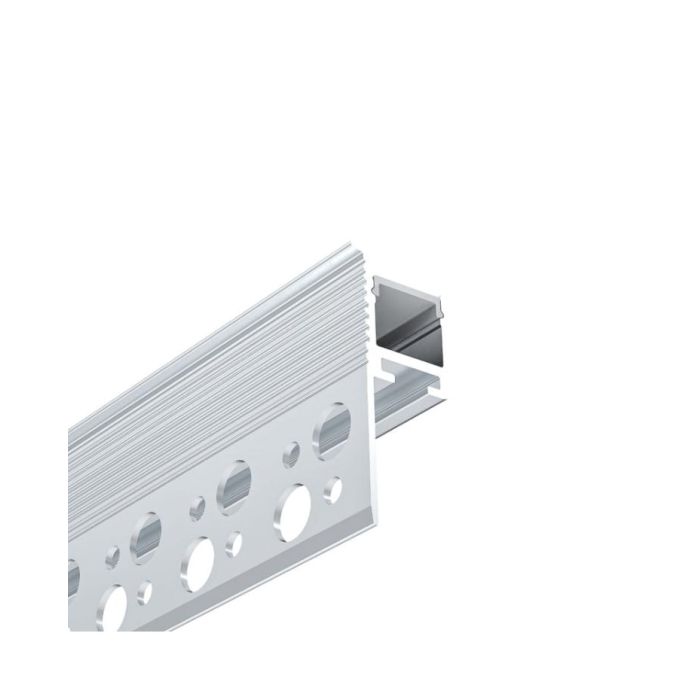

Check the Gypsum Recessed Lighting Channels, which can be mounted into the 1/2” Drywall or Plasterboard
and used for the linear lighting project for indoor applications. You can install them on the wall, ceiling, etc.
Recessed Light Channels are made of 6063-T5 extruded aluminum material and have anodized surface treatment,
anti-oxidation resistance, and a longer lifespan than similar products. There are three colors available: silver,
white and black colors. The standard length is 1M and 2M; cuttable and custom lengths are available.
The inner width is 10.3mm and allows the max-width of LED Strips to be 10mm, recommend installing
the Flexible COB LED Strip Lights as the light source, with no visible light dots and dark areas. Perfect to
create seamless linear lighting. Only one type of diffuser is available, the PC diffused cover, which is made
of imported brand material, anti-yellowing, perfect light distribution, and smooth light output. There are
three types of connectors available. You can use them to reconnect the Gypsum Light Channels for your projects.
Features:
Model: ALP185
Material: 6063-T5 Extruded Aluminum
Surface Treatment: Anodized
Size: 38.5*14.8mm(H*W)
Colors: White, Silver(Default), Black
Standard Length: 1M
Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
Custom Lengths Available: YES
Diffusers: PC Diffused Cover
Inner Width: 10.3mm(0.41")
Max Width Of LED Strips: 10mm
Max Power: 12W/M
Beam Angle: 100°
Tolerance: ±1%
IP Rate: IP20 Non-waterproof
Installation: Recessed
End Caps With Wire Holes And Without Holes Included
180°, 90° And 90° Vertical Connectors Sold Separately
LED Strip Lights Not Included
5 Years Warranty
Includes:
1 set of Gypsum Recessed Light Channel With Diffuser
End Caps(With And Without Wire Hole)
CE and RoHS approved
