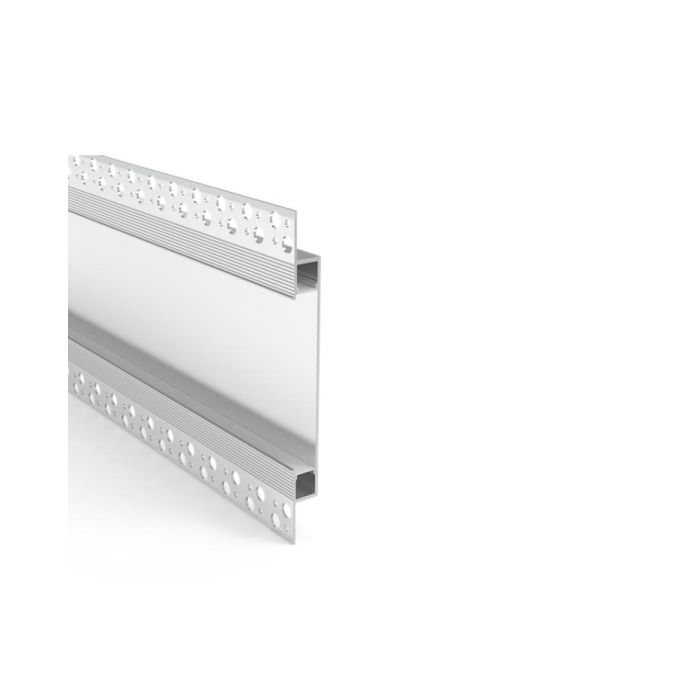

The LED Diffuser Channel, which has dual light slots and is used for recessed linear lighting between tiles and drywall,
creates excellent architectural lighting: recessed linear lighting, lighting between tiles, wall-mounted lighting, etc., providing
a sleek and modern look while also effectively diffusing the light. The dual light slots allow you to create exciting lighting
effects in your space. The Aluminium Light Diffuser Channels are made of extruded aluminum material with anodized
surface treatment, anti-oxidation, and a longer lifespan than similar products. The standard length is 1M and 2M, and
custom length is available. Only one type of diffuser is available: PC diffused cover, made of imported brand material,
anti-yellowing, and perfect lighting distribution. There are three colors available: silver, white or black. The inner width
is 10.3mm, can work with high-density SMD LED Strips, or COB LED Tapes with NO visible light dots and dark areas. End
caps with holes and without holes included are easy to recess into the drywall, and the max thickness of drywall is up to 12.5mm.
Features:
Model: ALP167
Material: Extruded Aluminium
Surface Treatment: Silver Anodized
Size: 147*14.2mm(H*W)
Colors: Silver, White(Default), Black
Standard Length: 1M
Other Lengths Available: 1.5M, 2M
Custom Length Available: YES
Diffuser: PC Diffused Cover
Inner Width: 10.3mm
Max Power: 12.2W/M
Can Work With High-Density SMD LED Tapes Or COB LED Strips
Tolerance: ±1%
IP Rating: IP20 Non-waterproof
Beam Angle: 100°
Installation: Recessed
Application: 12.5mm Drywall Or Tile
5 Years Warranty
Includes:
1 Set of LED Diffuser Channel
End Caps With Hole/Without Hole
CE and RoHS approved
