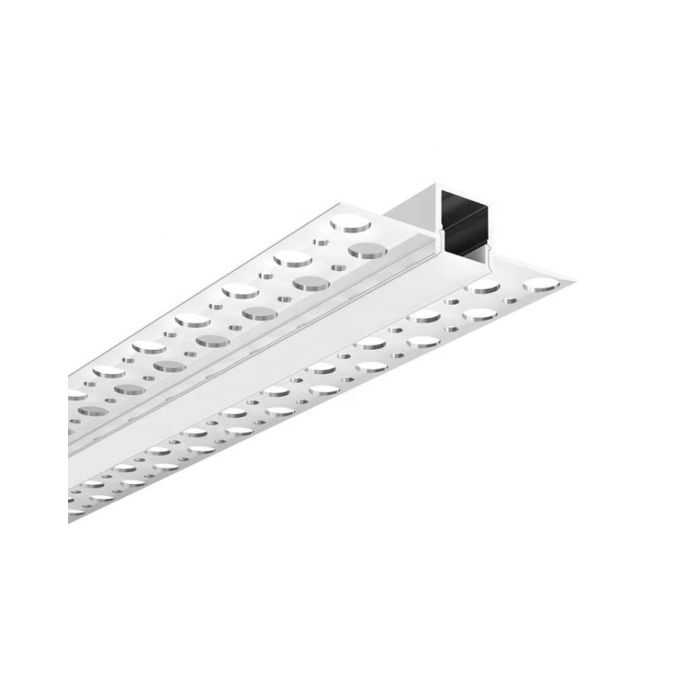

The LED Drywall Channel, which can be mounted on drywall and used for Trimless Recessed Lighting in any room, can be installed
flush against the ceiling, creating a trimless look and seamless integration of the light fixture into the room. Made of high-quality
aluminum material with silver anodized finish, anti-oxidation resistance, and a longer lifespan than similar products. The standard
length is 1M and 2M and can be cut to any length you want. End caps with wire holes and without wire holes make it easy to install
the LED Strips inside the Channels as a light source and connect to a Transformer to light up. The inner width is 10.5mm, allowing the
max width of LED Strips to be 10mm. The Aluminium Base can work as a heat sinker for better heat dissipation function. Only one type
of diffuser is available: PC diffused covers, which are made of imported-brand material, anti-yellowing, perfect light distribution, and soft
light output. These Channels also help minimize any potential damage to the drywall and provide a barrier between the light fixtures and
the drywall. It also helps to hide any wiring or electrical components necessary to install the light fixtures.
Features:
Material: 6063-T5 Aluminium Alloy
Model: ALP068-R
Size: 53*14mm
Shape: T Shape
Color: Silver
Cover: PC Diffused Cover
Surface Treatment: Silver Anodized
End Caps With Hole / Without Hole Included
Standard Length: 1Meter
Other Lengths Available: 1.5M, 2M, 2.5M, 3M
Custom Length Available: YES
Inner Width: 10.5mm
Allows The Max Width Of Strip Lights To Be 10mm
Can Work With SMD LED Strips Or COB Strip Lights
Max Power: <15W/Meter
Installation: Drywall Trimless Recessed
Applications: Trimless Recessed Lighting
LED Strip Lights, Dimmers, Controllers, And Transformers Sold Separately
Warranty: 5 Years
Shipping Method: By Express, By Sea(Send Us Inquiry)
Includes:
1 set of LED Drywall Channel With Diffuser
End Caps(With Wire hole And Without Wire Hole)
CE and RoHS approved
