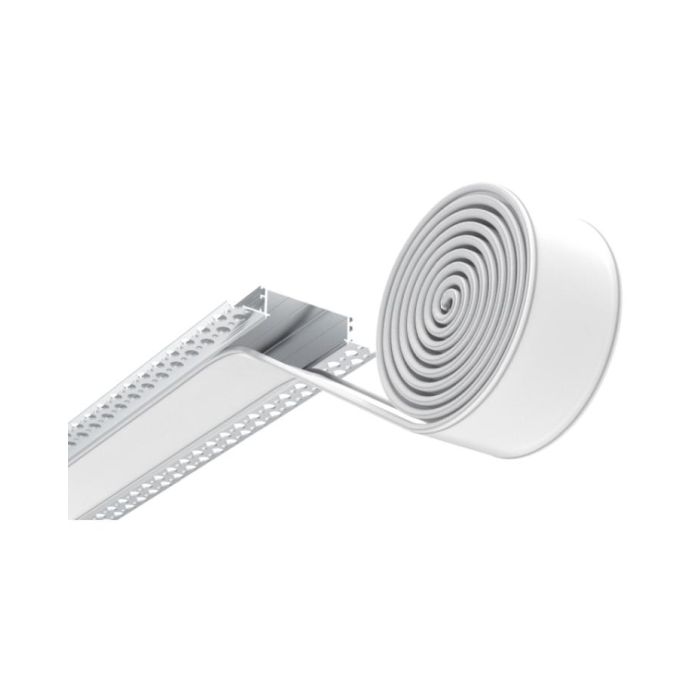

The LED Light Diffusers with flanges are easy to recess into the drywall structure on the wall or ceiling and come with 20 meters
long diffuser to create a seamless and shadow-free look. They are ideal for offices, retail spaces, shopping malls, hotels, restaurants,
and commercial facilities to create longer linear lighting. There are 2 types of covers available, the PC diffused cover and the black diffused
cover. The diffusers are made of brand material, and anti-yellowing. They are designed to disperse the light from LED Strips, creating even,
uniform light free of glare and hotspots. It can cut the cover to any length for your interior linear lighting projects. The aluminum base is
made of 6063-T5 extruded aluminum material with an anodized surface treatment anti-oxidation feature and has a longer lifespan than other
similar products. There are three colors available: silver, white and black. Standard length is 1M and 2M, and you can cut to any length and custom
length available. The inner width is 51.4mm and allows the max-width of LED Lights to be 50mm, and you can install multiple lines of Flexible COB
LED Strips or Rigid LED Tapes in it. The aluminum base can be worked as a heat sinker for better heat dissipation. End caps with wire holes are included,
and it is easy to connect the LED Light to a power supply or a dimmer to light up or adjust the brightness. There are three types of joiners available: 90°,
90° vertical, and 180 Joiners, which can be used to reconnect the LED Lighting Diffusers together for lighting projects.
Features:
Model: ALP174
Material: 6063-T5 Extruded Aluminum
Surface Treatment: Anodized
Size: 100*18.6mm(W*H)
Colors: Silver, White, Black
Standard Length: 1M
Other Lengths Available: 1.5M, 2M
Custom Length Available: YES
Diffusers: PC Diffused Cover, Black Diffused Cover(20M/Reel)
Inner Width: 51.4mm
Max Width Of LED Light: 50mm
Max Power: 24W/M
Beam Angle: 110°
Tolerance: ±1%
IP Rating: IP20 Non-waterproof
End Caps With Wire Hole Included
90°, 90° Vertical And 180° Joiners Sold Separately
Installation: Recessed
5 Years Warranty
Includes:
1 String of LED Light Diffuser
End Cap With Hole/Without Hole
CE and RoHS approved
