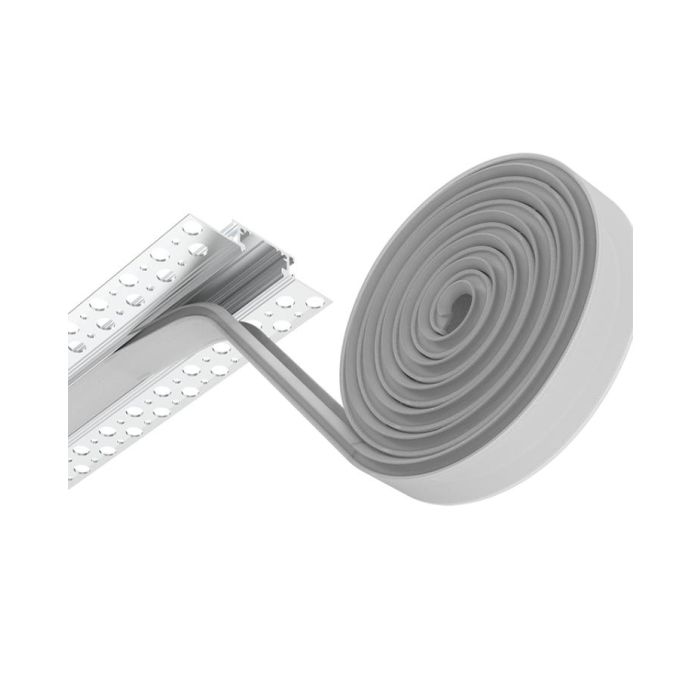

The LED Recessed Profiles with flanges, which can be recessed in the drywall or ceiling, come with a long diffuser that is 20 meters per
roll, which you can use for long indoor linear lighting without any gap. The Recessed Aluminum Profiles are made of extruded aluminum
material with an anodized surface treatment, for anti-oxidation resistance and a longer lifespan than other similar products, The standard
length is 1M and 2M, and cuttable and custom lengths are available. There are 2 types of diffusers available: the PC diffused cover and the
black diffused cover, both of them are flexible and 20 meters per roll, you can cut to any length you need or you can use them for long-distance
linear lighting projects. The inner width is 12.4mm and can work with Flexible SMD LED Tapes and COB LED Strips, the max-width of the PCB
board is 12mm. End caps with holes included, easy to connect the LED Light to Power Supply to light up, the 90°，135°, and 180° Connectors
are sold separately, you can use them to design the shape for your application. the Recessed Dry Wall LED Profiles are non-waterproof, only fit for indoor use.
Features:
Model: ALP156
Material: Extruded Aluminum
Size: 69.4*13mm(W*H)
Anodized Silver Surface Treatment
Colors: Silver(Default), Black, White
Standard Length: 1M
Other Lengths Available: 0.5M, 1.5M, 2M
Custom Length Available: YES
Tolerance: ±1%
Diffusers: PC Diffused Covers, Black Diffuser
Inner Width: 12.4mm
Max Width Of LED Strips: 12mm
Can Work With SMD LED Strips And COB LED Strips
IP Rating: IP20 Non-Waterproof
End Caps With Hole/Without Hole Included
180° Connector, 135° Connector, 90° Connector And 90° Vertical Connectors Sold Separately
Applications: Recessed In The Drywall Or Ceiling
5 Years Warranty
Includes:
1 Set of LED Recessed Profile With Diffuser
End Caps (With Hole/Without Hole)
CE and RoHS approved
