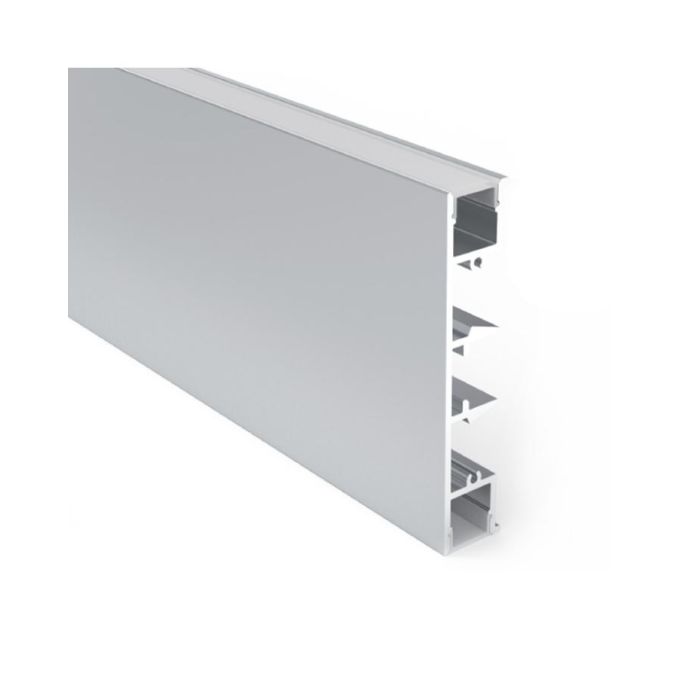

Check the LED Strip Lights Aluminum Profiles, which with up and down lighting designs and are easy to be mounted on the wall to
create an impressive lighting effect, providing a sleek and modern look to your wall light. The LED Strip Channels are made of 6063-T5
aluminum material with silver surface treatment, anti-oxidation resistance, and a longer lifespan than other similar products. There
are three colors available: silver, white and black. The standard length is 1M and 2M, custom length is available. There is only one type
of diffuser available: the PC diffused cover, which is made of brand material, anti-yellowing, perfect lighting distribution, and evenly light
output. The inner width of the slots of the LED Channel is 10.5mm, recommend working with high-density FCOB LED Tapes, and the max-width
of the LED Strips to be 10mm, and the Aluminum Channels also work as a heat sinker for better heat dissipation. End caps with wire holes
included, easy to connect the LED Strip Lights to the Power Supply. There are three types of connectors sold separately, you can purchase
them separately for your lighting project.
Features:
Model: ALP170
Material: 6063-T5 Extruded Aluminum
Surface Treatment: Anodized
Colors: Silver(Default), White, Black
Size: 75*15mm(H*W)
Standard Length: 1M
Other Lengths Available: 0.5M, 1.5M, 2M
Custom Length Available: YES
Diffuser: PC Diffused Cover
Inner Width: 10.5mm
Max Width Of LED Strips: 10mm
Max Power: 15*2W/M
Beam Angle: 100°
Tolerance: ±1%
IP Rating: IP20 Non-waterproof
Installation: Surface Mounted
Metal Mounting Clips Included
End Caps With Holes/Without Holes Included
180°, 90° And 90° Vertical Connectors Sold Separately
5 Years Warranty
Includes:
LED Strip Light Aluminum Profile With Diffuser
End Caps (With Hole/Without Hole)
Metal Mounting Clips
CE and RoHS approved
