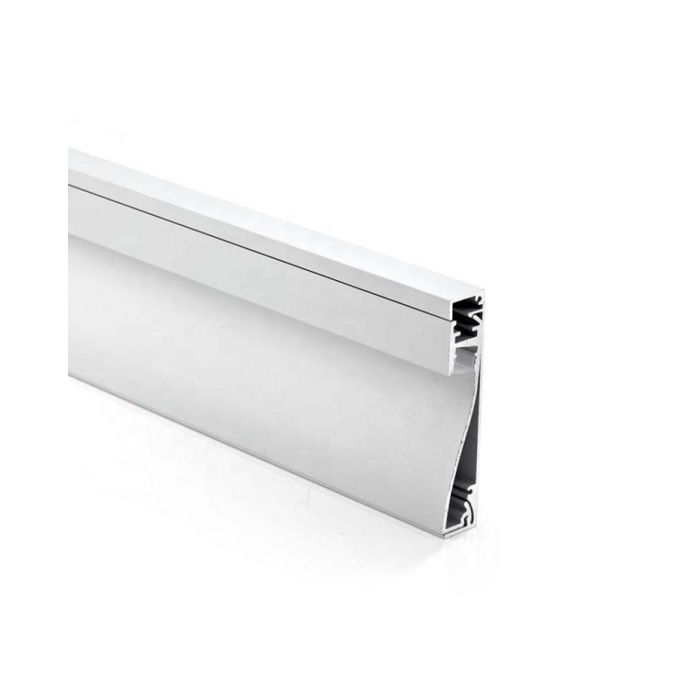

The LED Tape Channel Without Flange is an excellent option for footline light, baseboard accent lighting, and skirting Lighting.
The Tape Light Profiles are designed to provide a sleek and seamless look. It's made of high-quality aluminum material with an
anodized finish, anti-oxidation resistance, and a longer lifespan. The standard length is 1M and 2M and can be cut to any size
that fits your project. The inner width is 10.3mm, which allows the maximum width of strip lights to be 10mm. Recommend
adding high-density SMD Strip Lights as the light source, without visible light dots. Only one type of diffuser is available: the PC
Opal Diffuser, made of brand material and anti-yellowing to create an even, seamless light. The Aluminum Light Channels allow
the LED Strips to be concealed within the Skirting Board, creating a more subtle effect. The Channels are designed to fit snugly
and can be easily installed with a few simple tools. It's perfect for creating a soft glow along the footline.
Links: Corner Connectors For ALP076
Features:
Model: ALP076
Size: 80*16.1mm
Material: AL6063-T5 Aluminium
Color: Silver, White, Black
Diffuser: PC Opal Diffuser
Surface Treatment: Anodized
Inner Width: 10.3mm
Allows The Max Width Of Strip Lights: 10mm
Max Power: 20W/Meter
Standard Length: 1Meter
Other Length Available: 1.5Meter, 2Meter, 2.5Meter, 3Meter, 5Meter
Inside Corner And Outside Corner Connectors Sold Separately
Installation: Recessed/Surface Mounted
Applications: Skirting Board LED Lights
Warranty: 5 Years
Includes:
1 set of LED Tape Channel With Diffuser
End Caps
CE and RoHS approved
