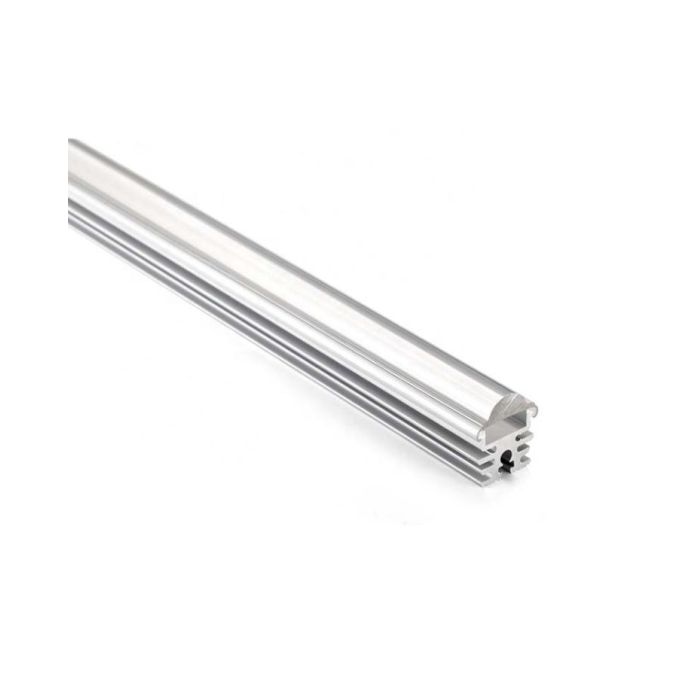

The LED Tape Light Profiles with round PMMA lenses are designed to attach the LED Tape Light to walls and other surfaces to create a continuous
light source. 9 types of diffusers are available: 30°, 60° and 90° for various view angle. The standard length is 1M and 2M and can be cut to any
size fit for your projects. Made of 6063-T5 aluminum alloy with silver anodized surface treatment, anti-oxidation resistance, and a longer lifespan
than similar products. There are 9 types of PMMA Lens available, made of brand-stable material, anti-yellowing, designed to reduce glare and
increase the light intensity of the LED Lights, perfect light distribution, and even light output. LED Tape Light Profiles can be used as a heat sink
for better heat dissipation, extending the lifespan of LED Lighting. End caps and metal clips are included, and it is easy to connect to the Power
Supply LED to light them up and mount them on the surface of projects. With these profiles, you can create a unique lighting effect that will stand out.
Features:
Model: ALP040 Series
Material: 6063-T5 Aluminium Alloy
Surface Treatment: Silver Anodized
Colors: Silver(Default), White, Black
Size: ALP-040: 18*23.5mm(W*H); ALP-040-30: 18*22.2mm(W*H); ALP-040-60: 18*22.2mm(W*H); ALP-040-90: 18*21mm(W*H)
Inner Width: 18mm
Compatible With Double Rows 3528 Or Single Row 5050 LED Strips
Max Power: <15W/Meter
Beam Angle: 180°，30°，60°，90°
Standard Length: 1Meter
Other Lengths Available: 0.5M, 1.5M, 2M, 2.5M, 3M
Custom Length Available: YES
Diffusers: PMMA Opal Matte Diffuser, PMMA Semi-Clear Diffuser, PMMA Clear Diffuser, PMMA 30° Clear Lens, PMMA 30° Semi-Clear Lens, PMMA 60° Clear Lens, PMMA 60° Semi-Clear Lens, PMMA 90° Clear Lens,
PMMA 90° Semi-Clear Lens
End Caps With Wire Holes And Metal Clips Included
COB LED Strips are Sold Separately
Installation: Surface Mounted
Applications: Under Cabinet Or Wardrobe
5 Years Warranty
Includes:
1 set of LED Tape Light Profile With Lens
End Caps
Metal Clips
CE and RoHS approved
