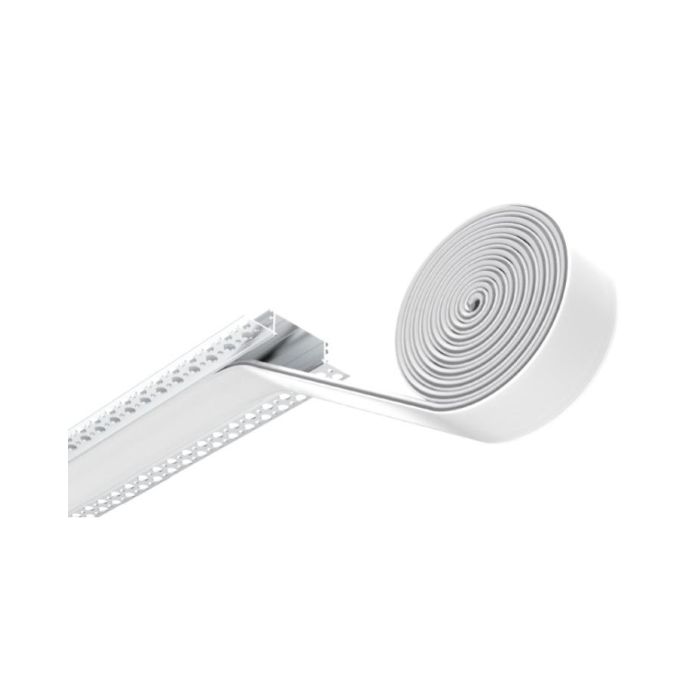

Check the Light Strip Channels with long flanges, which can be installed on the wall or ceiling. It comes with 20-meter-long white
or black diffusers to create beautiful and even illumination in the rooms. Two types of Diffusers For Strip Lights are available:
PC diffused covers and black PC diffusers. Both of them are 20 meters per reel and are made of brand material, anti-yellowing,
and even light distribution, you can cut to any length for the interior linear lighting. The Aluminum Base is made of 6063-T5
aluminum material with anodized surface treatment, anti-oxidation resistance, and a longer lifespan than similar products.
The standard length is 1M and 2M and can be cut to any size for your need, and custom lengths are available. The inner width is
41.4mm, which allows the max-width of the LED Light to be 40mm, you can install multiple lines of COB LED Ribbons as the light
source. End caps with wire holes included, easy to connect to the LED Light to a power supply to light up. Aluminum Profile can
be worked as a heat sinker for better heat dissipation. Three types of joiners are available: 90°, 90° vertical, and 180°. You can
purchase them separately and reconnect the LED Light Channels for the lighting projects.
Features:
Model: ALP173
Material: 6063-T5 Extruded Aluminum
Size: 90*18.6mm(W*H)
Colors: Silver, White, Black
Standard Length: 1M
Other Lengths Available: 1.5M, 2M
Custom Length Available: YES
Diffuser: PC Diffused Cover, Black Diffused Cover
Inner Width: 41.4mm
Max Width Of LED Strips: 40mm
Max Power: 18W/M
Beam Angle: 100°
Tolerance: ±1%
IP Rating: IP20 Non-waterproof
End Caps With Wire Holes/Without Holes Included
90°, 90° Vertical And 180° Joiners Sold Separately
Installation: Recessed
5 Years Warranty
Includes:
1 set of Light Strip Channel With Diffuser
End Cap With Hole/Without Hole
CE and RoHS approved
