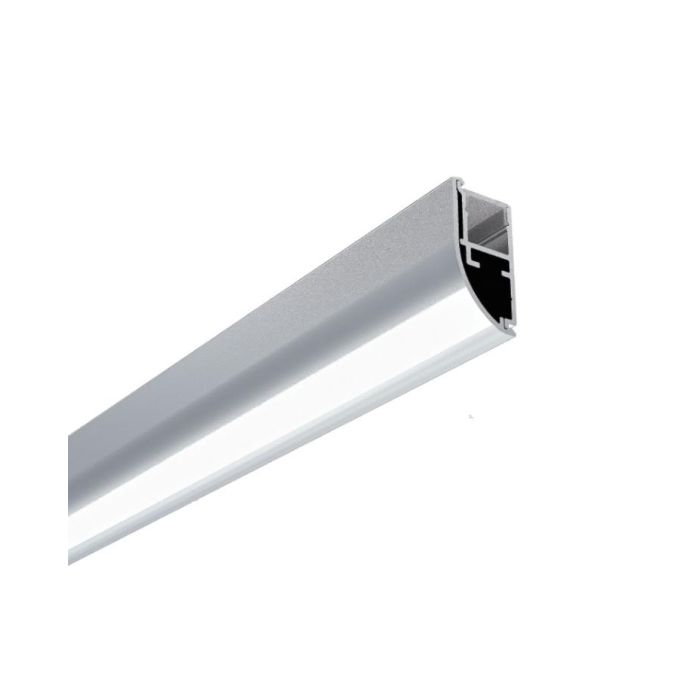

The Mini LED Aluminum Profiles with Diffusers For Wall Light, which is easy to mount on the wall to create a stylish and
modern look for their wall lighting. The standard length is 1M and 2M, and can be cut to any length, custom lengths are
available. LED Light Profiles are made of 6063-T5 extruded aluminum material with anodized surface treatment, anti-oxidation
resistance, and a longer lifespan than other similar products. Three types of colors are available: Silver, white and black colors.
The inner width is 10.5mm and allows the max-width of LED Strips to be 10mm, you can install COB LED Tapes inside as the light
source, and the Aluminum Base can be worked as a heat sinker for better heat dissipation. There is only one type of diffuser available,
the PC diffused cover, which is made of imported brand material, anti-yellowing, and helps to evenly distribute the light and provide a
soft and even lighting effect. The Diffusers also help to protect the LED Strips from dust, moisture, and other. End Caps are included,
easy to connect to the LED Driver to light up or the Light Controller to adjust the brightness. there are three types of connectors are
available, 90°，90° vertical, and 180° connectors are sold separately, you can use them to reconnect the LED Strip Profiles for longer lengths.
Features:
Model: ALP195
Material: 6063-T5 Extruded Aluminum
Size: 15.4*32.2mm(W*H)
Colors: Silver, White, Black
Surface Treatment: Silver
Standard Length: 1M
Other Lengths Available: 2M
Custom Length Available: YES
Diffusers: PC Diffused Cover
Inner Width: 10.5mm
Max Width Of LED Strips: 10mm
Max Power: 12W/M
Beam Angle: 100°
IP Rate: IP20 Non-waterproof
Tolerance: ±1%
End Caps Included
90°, 90° Vertical And 180° Connectors Sold Separately
LED Strips, Controllers, And Light Drivers Sold Separately
Installation: Wall Surface Mounting
5 Years Warranty
Includes:
1 set of LED Aluminum Profile With Diffuser
ABS End Caps
CE and RoHS approved
