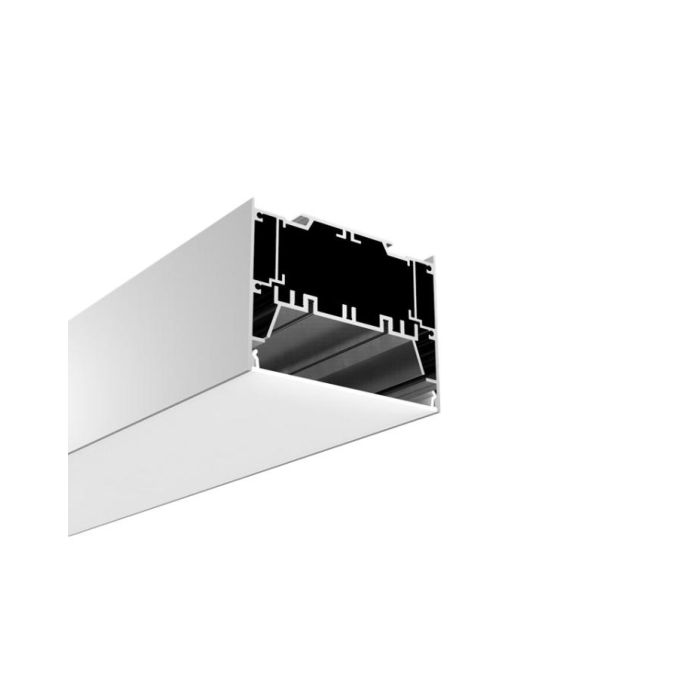

The 4 inches LED Strip Track Diffuser width is 100mm, and the inner width is 69.5mm, allowing the max-width of
LED Lights to be 69mm, you can install multiple lines of Flexible LED Strips, COB LED Tapes and Rigid LED Modules
as the light source. The Suspension Wire Kits are included and allowed to be hung on the ceiling. They can be used
as the main lighting in offices, storages, hotels, supermarkets, etc. Made of 6063-T5 aluminum material and anodized
surface treatment, anti-oxidation resistance and has a longer lifespan. The standard length is 1M and 2M, and custom
lengths are available. There are three colors available: silver, white, and black colors. Only one type of diffuser is available:
the PC diffused cover, which is made of imported-brand material, anti-yellowing, perfect light distribution, and soft light
output. Metal clips and steel wires are included, which allow you to hang the LED Strip Light Diffuser on the ceiling or
mount it on the wall. There are four types of connectors sold separately, and you can use them to reconnect the LED Tracks
for the lighting projects.
Features:
Model: ALP10075-R
Material: 6063-T5 Extruded Aluminum
Surface Treatment: Anodized
Colors: Silver(Default), White, Black
Size: 100*75mm(W*H)
Standard Length: 1M
Other Lengths Available: 2M, 2.5M
Custom Length Available: YES
Diffusers: PC Diffused Cover
Inner Width: 69.5mm
Max Width Of LED Strips: 68.5mm
Max Power: 50W/M
Beam Angle: 100°
Tolerance: ±1%
IP Rate: IP20 Non-waterproof
End Caps And Clips Included
"T", "X", "IL" And "L" Shape Connectors Sold Separately
Strip Lights, Controllers, And Transformers Sold Separately
Installation: Pendant/Surface Mounting
5 Years Warranty
Includes:
1 set of LED Strip Track Diffuser
End Caps
Inside Clips
Stainless Clips
Steel Wires
CE and RoHS approved
