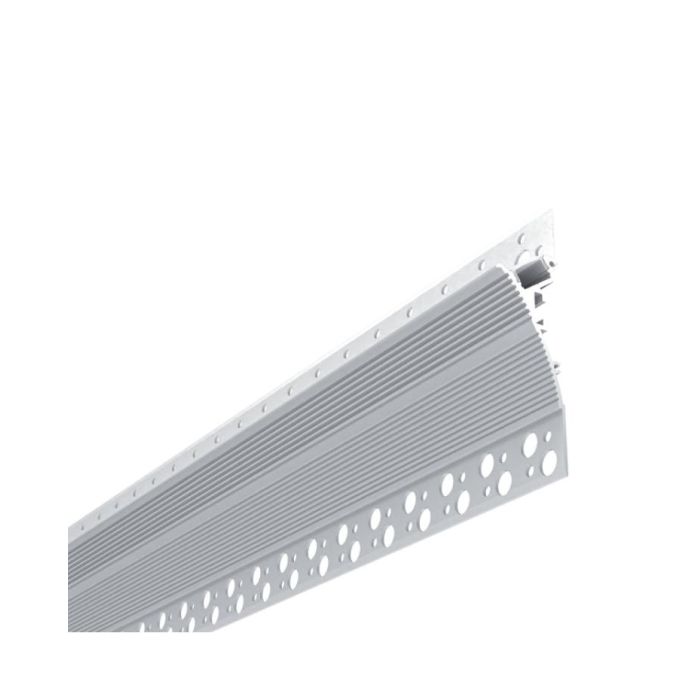

The Plaster-in LED Strip Recessed Channels are easily recessed into the drywall for ceiling cove lighting, creating a warm and seamless
ambient atmosphere. The LED Channels are designed to seamlessly integrate into the walls and ensure the LED Strips are hidden from view.
They are made of 6063-T5 extruded aluminum material, with anodized surface treatment, anti-oxidation resistance, and a longer lifespan.
There are three colors available: white, silver, and black. The standard length is 1M and 2M, which can be cut to any size. Custom lengths
are available. Two types of diffusers are available: the PC diffused cover and the PC semi-clear cover. They are made of imported brand
material, anti-yellowing, and perfect light distribution. The inner width is 12.3mm, which allows the maximum width of LED strips to be
12mm. It is easy to install the plaster in LED lighting and COB Tapes into the Mud In LED Channels, and the aluminum base can work as a
heat sinker for better heat dissipation. End caps are included, and it is easy to connect to an LED Driver to light up the LED Lights. 90°, 90°
vertical, and 180° connectors are sold separately, and you can use them to connect the Plaster In Channels.
Features:
Model: ALP128-R
Material: 6063-T5 Extruded Aluminum
Surface Treatment: Anodized
Size: 88*23.7mm(W*H)
Colors: White(Default), Silver, Black
Standard Length: 1M
Other Lengths Available: 1.5M, 2M, 2.5M, 3M, And Max 6M
Custom Length Available: YES
Diffusers: PC Diffused Cover/PC Semi-Clear Cover
Inner Width: 12.3mm
Max Width Of LED Strips: 12mm
Max Power: 18W/M
Beam Angle: 100°
Tolerance: ±1%
IP Rate: IP20 Non-waterproof
End Caps Included
180°，90° And 90° Vertical Connectors Sold Separately
LED Strips, Dimmers, Controllers, And Transformers Sold Separately
Installation: Recessed
5 Years Warranty
Includes:
1 set of LED Strip Channel With Diffuser
End Caps
CE and RoHS approved
