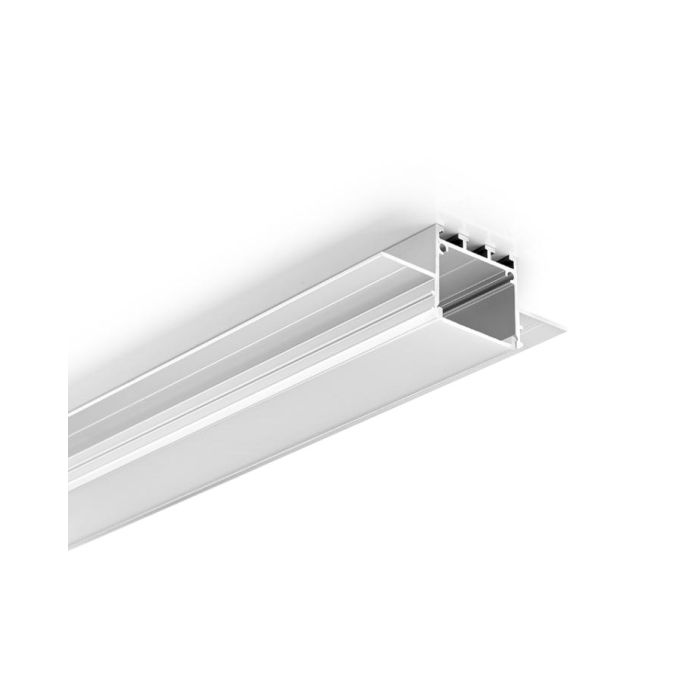

The ALP092 Plaster Trimless Recessed Drywall LED Profiles, which fit for a 12.5mm thick plasterboard flush mount installation,
with a compact design to recess into ceilings or walls easily with a thin layer of plaster. This minimalist linear solution has been
designed to sit flush with the surface to give a sleek appearance and create a modern look for ceiling lighting, perfect for tight
spaces where other lighting fixtures wouldn't fit. The inner width is 24.5mm and allows the max width of Strip Lights to be 24mm,
compatible with double rows of 8mm, 10mm, or 12mm COB or RGB LED Strip Lights as the light source. End caps are included,
easy to connect the LED RGB Strips to Linear Driver to light up, the LED Profiles can be used as heat sinkers for better heat dissipation.
Plasterboard LED Profiles are made of 6063-T5 aluminum alloy with silver anodized surface treatment, anti-oxidation resistance,
dustproof and waterproof, a longer lifespan than other similar products. There are three types of diffusers available, which are made
of brand-stable material, anti-yellowing, perfect light distribution, and evenly light output. The standard length is 1M and 2M, the max
length is 5 meters per piece and cuttable, the "L" and "-" connectors are sold separately, you can use them for the interior linear lighting project design.
Features:

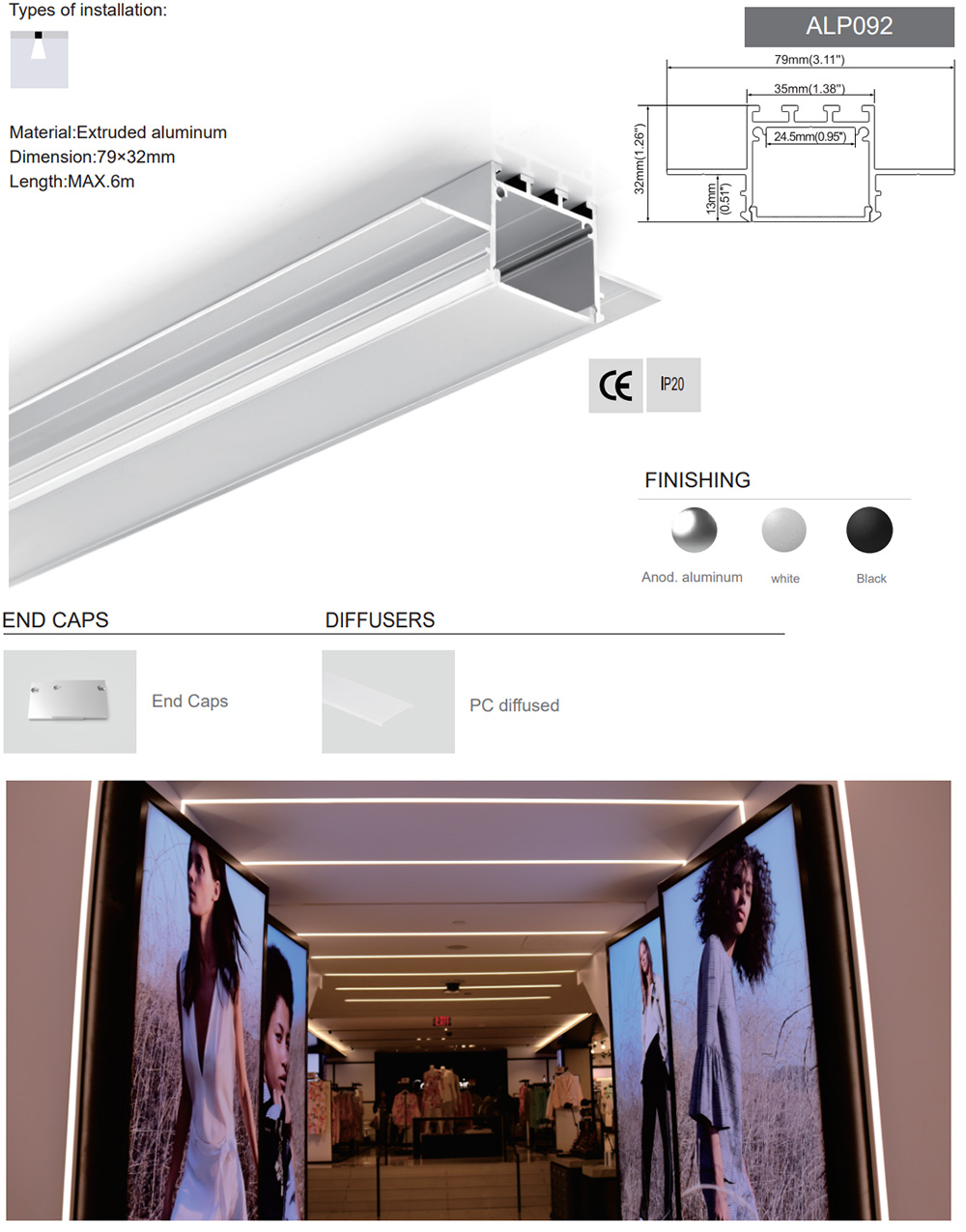

Model: ALP092
Material: 6063-T5 Aluminum Alloy
Surface Treatment: Silver Anodized
Colors: Silver(Default), White, Black

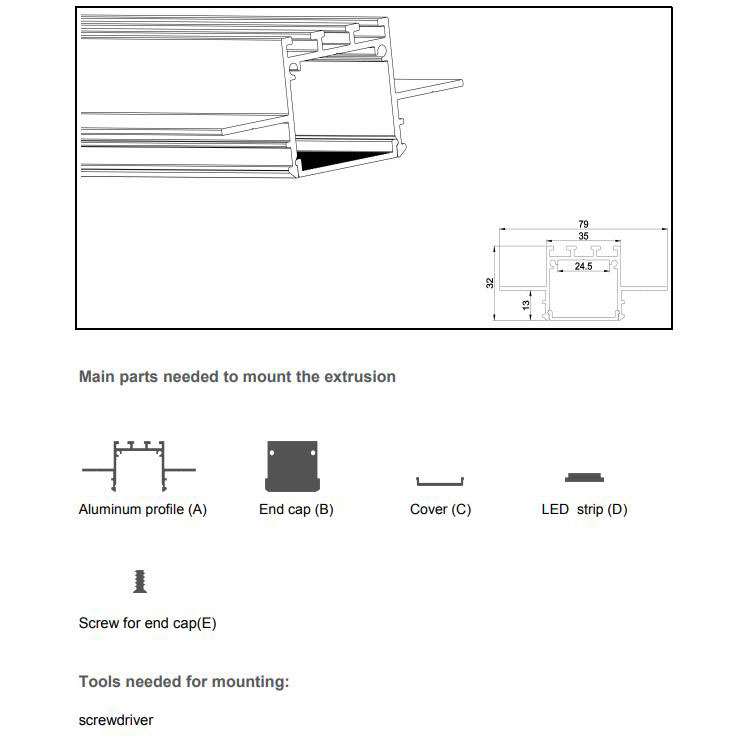

Size: 79*32mm(W*H)
Inner Width: 24.5mm
Compatible With Double Rows 8mm, 10mm, and 12mm COB Or SMD LED Strip Lights
Max Power: <25W/M
Standard Length: 1M
Other Lengths Available: 1.5M, 2M
Custom Length Available: YES
Diffusers: PC Opal Matte Diffuser, PC Semi-Clear Diffuser, PC Clear Diffuser

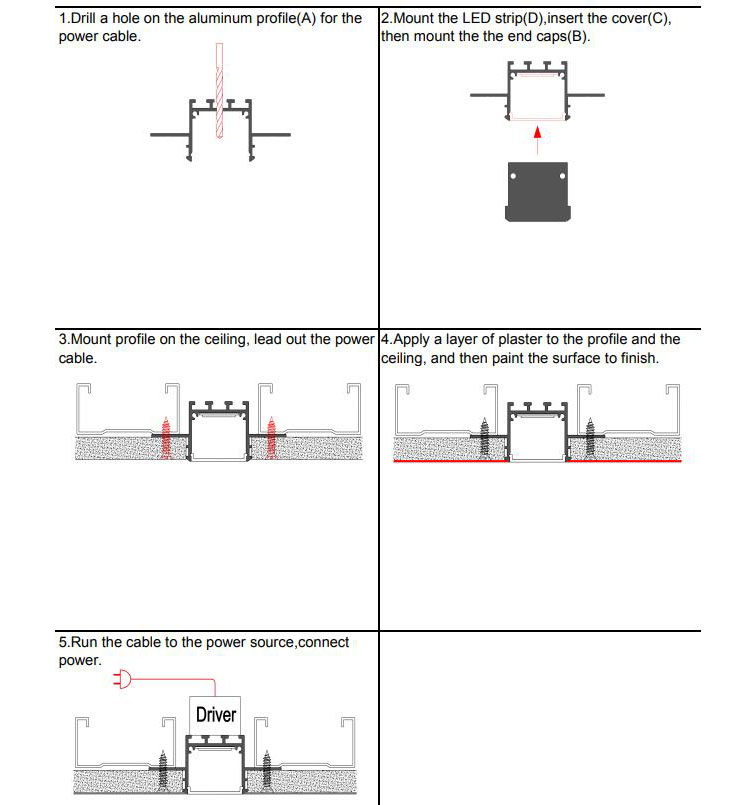

Installation: Recessed
180°，90° and 90° Vertical Connectors Sold Separately
Applications: Fit For 12.5mm Thick Plasterboard Interior Linear Lighting Project
5 Years Warranty
Includes:
1 Set of LED Drywall Profile With Diffuser
End Caps
CE and RoHS approved
