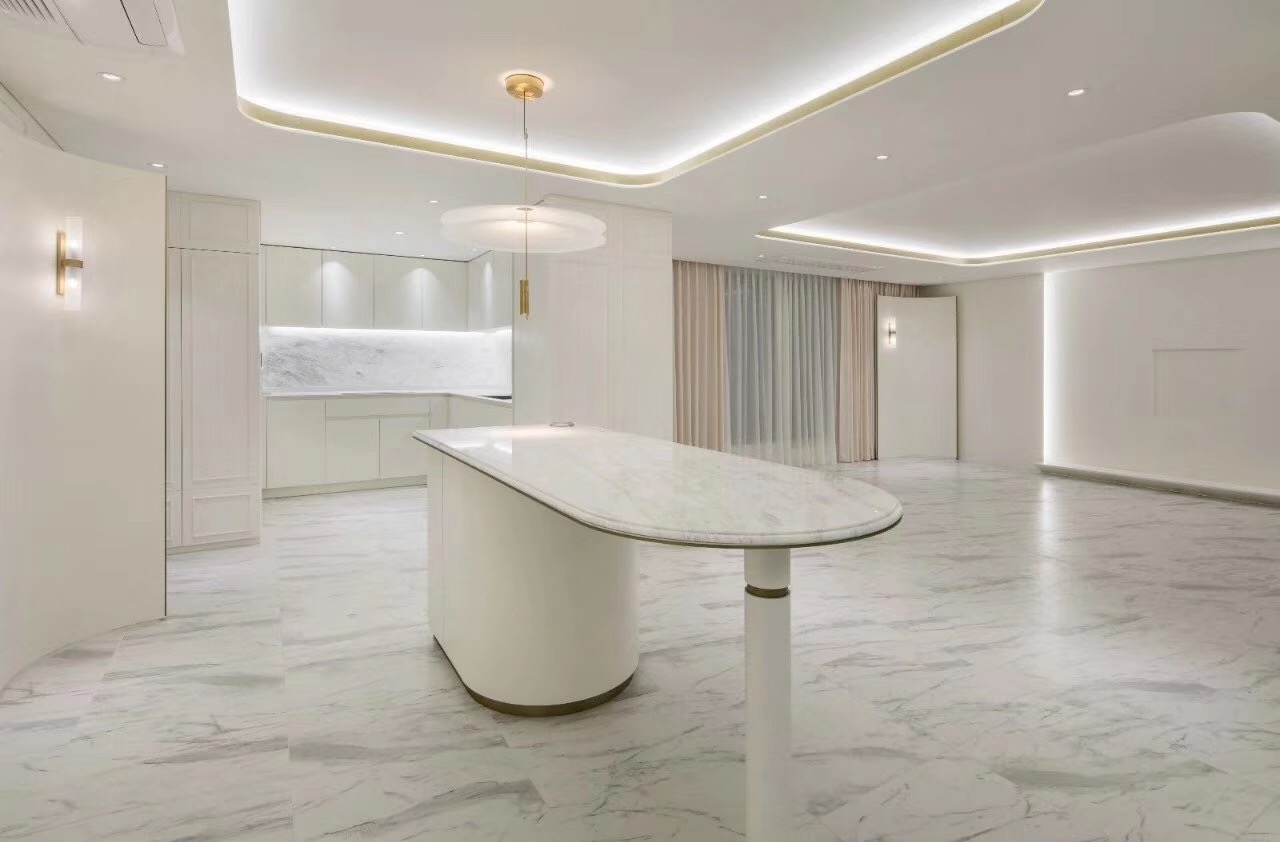

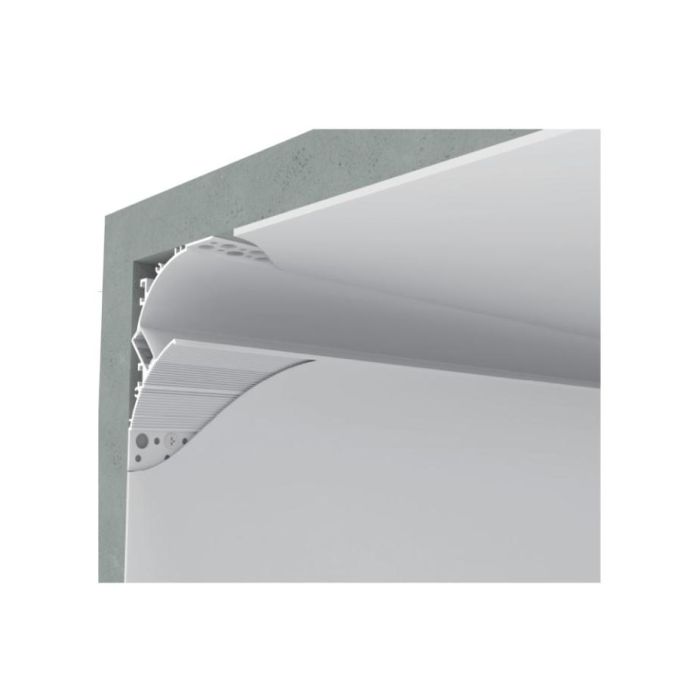

The LED 45 Degree Channel for Wall Indirect Lighting, which can be installed on the wall or ceiling, can used as the
wall wash light from wall to ceiling or ceiling to wall for architectural lighting. The standard length is 1M and 2M and
can be cut to any length, and custom lengths are available. LED Wall Channels are made of 6063-T5 aluminum material
and have anodized surface treatment, anti-oxidation resistance, and a longer lifespan. There are three colors available:
white, silver, and black colors. Only one type of diffuser is available: the PC diffused cover, which is made of imported
brand material, anti-yellowing, perfect light distribution, and soft light output. The inner width is 18.9mm and allows
the max-width of Indirect LED Lights to be 18mm. We will recommend installing double rows of COB LED Strips or Rigid
LED Strips as the light source, with no visible light dots and dark areas. End caps are included, and it is easy to connect
to the LED Light Converter to light up the LED Indirect Lights. Three types of connectors are sold separately: 90°, 90° Vertical,
and 180° Connectors. You can purchase them to reconnect the LED Channels for a longer length.
Quick Links: ALP194 Channel Connectors

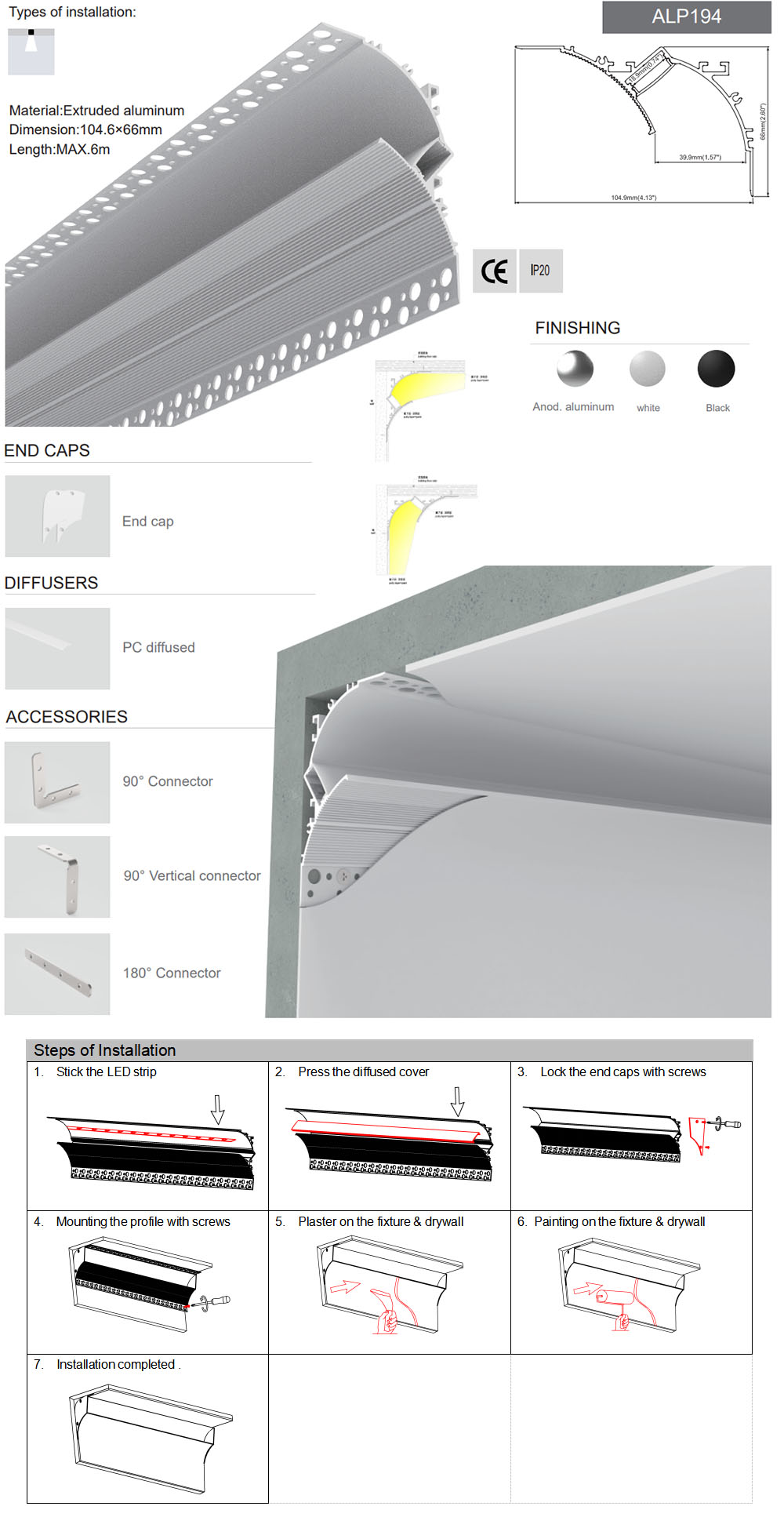

Features:
Model: ALP194
Material: 6063-T5 Aluminum
Size: 104.6*66mm(W*H)
Surface Treatment: Anodized
Colors: White(Default), Silver, Black
Standard Length: 1M
Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
Custom Length Available: YES
Diffusers: PC Diffused Cover
Inner Width: 18.9mm
Max Width Of LED Lights: 18mm
Max Power: 18W/M
Beam Angle: 100°
90°, 90° Vertical And 180° Connectors Sold Separately
Tolerance: ±1%
IP Rate: IP20 Non-waterproof
End Caps Included
Installation: Surface Mounting
5 Years Warranty
Includes:
1 set of 45° LED Channel With Diffuser
End Caps
CE and RoHS approved
