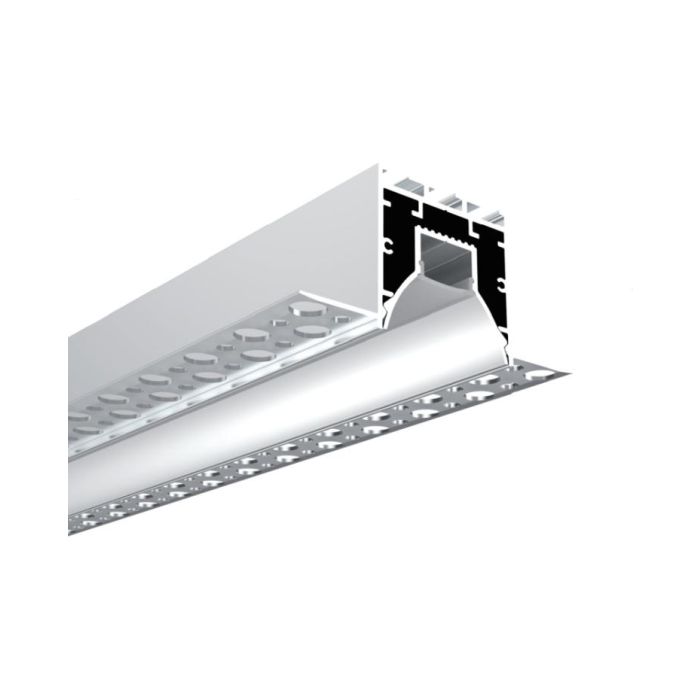

The LED Extrusion Profiles with a regressed cover, easy to recess into the drywall for unobtrusive lighting in any room.
The standard length is 1M and 2M and can be cut to any length for your project, and custom lengths are available.
The Aluminum Extrusion Profiles are made of 6063-T5 extruded aluminum material with anodized surface treatment,
great anti-oxidation resistance, and a longer lifespan than other similar products. The inner width is 15.2mm, which
allows the max-width of LED Strips or Rigid LED Modules to be 15mm, easy to install the SMD LED Tapes or Flexible
COB LED Strips inside, and the Aluminum Base can be used as a heat sinker for better heat dissipation. There are 8
types of diffusers available, all of them are made of brand material, anti-yellowing, perfect lighting distribution, and
smooth light output. you can take the PC series Diffusers, Prismatic Cover, or 15°, 30°, or 60° lens for various lighting
effects. The 90°, 90° vertical, and 180 joiners are sold separately, easy to reconnect the Light Extrusion Profiles.
Features:
Model: ALP165
Material: 6063-T5 Extruded Aluminum
Surface Treatment: Anodized
Colors: Silver(Default), Black, White
Size: 79*38mm(W*H)
Standard Length: 1M
Other Lengths Available: 1.5M, 2M
Custom Length Available: YES
Diffusers: PC Diffused Cover, PC Semi-clear Cover, PC Clear Cover, PC Frosted Cover, Prismatic, 15°/30°/60° Lens
Inner Width: 15.2mm
Max Width Of LED Strips: 12mm
Max Power: 18W/M
Beam Angle: 90°
Tolerance: ±1%
IP Rating: IP20
Installation: Recessed
End Caps With Holes Included
90°，90° Vertical, 180° Connectors Sold Separately
5 Years Warranty
Includes:
LED Extrusion Profile With Diffuser
End Cap With Hole/Without Hole
CE and RoHS approved
