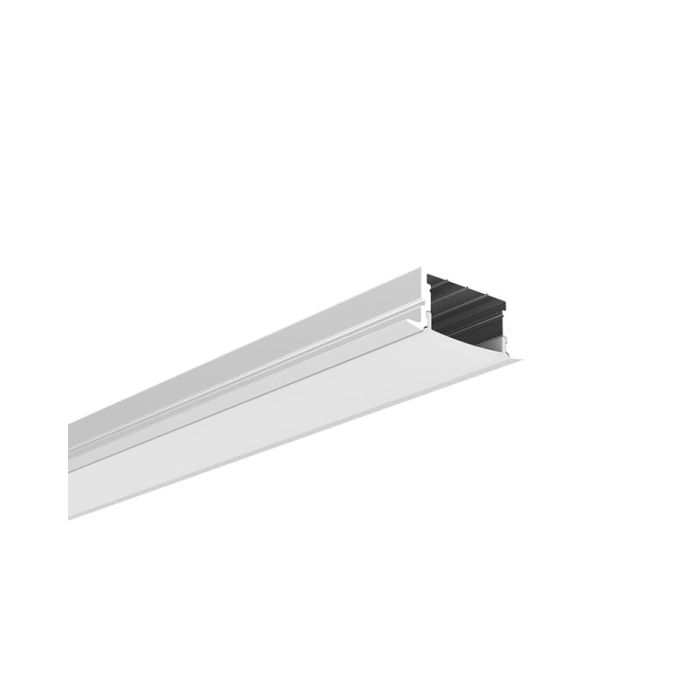

The Aluminum Profile With Flange is a great way to add a modern and sleek lighting look to your kitchen. This type of profile is designed
to be mounted directly into the ceiling or under cabinets and can provide a unique lighting effect with its slim design. It features a flange
that will help keep the lighting in place and give a neat finish. They are made of 6063-T5 aluminum material with an anodized finish, anti-oxidation
resistance, and a longer lifespan. The standard length is 1M and 2M; you can cut to any length you want. There are six different covers available
for various applications: the PMMA Opal Matte Cover, PMMA Semi-Clear Cover, PMMA Clear Cover, PC Clear Cover, PC Semi-Clear Cover, and PC
Opal Diffuser, the PMMA series covers made of Degussa material from Germany, and PC series covers made of Teijin material from Japan,
anti-yellowing and with perfect light distribution. The inner width is 18.7mm, allowing the max width of Strip Lights to be 18mm. Recommend
adding high-density double-rows of COB, 3528, or 5050 Flexible LED Strip Lights as the light source without visible light dots. End caps with wire
holes and spring clips are included, and it is easy to connect the LED Strips to the Mean Well Power Supply to light up or the Light Dimmer to
adjust the brightness. This type of lighting Profile is perfect for modern and contemporary kitchens and can provide a unique look and feel to the space.
Features:
Model: ALP013-R
Material: 6063-T5 Aluminum Alloy
Surface Treatment: Silver Anodized
Size: 30.5mm(W)*12.8mm(H)
Inner Width: 18.7mm
Max Power: <20W/M
Allows The Max Width Of Strip Lights To Be 18mm
Recommend Adding Double-Rows COB, 3528 Or 5050 LED Strip Light
Covers: PMMA Opal Matte Cover, PMMA Semi-Clear Cover, PC Diffused Cover, PMMA Clear Cover
Standard Length: 1Meter
Other Lengths Available: 1Meter,1.5Meter, 2Meter, 2.5Meter
Custom Length Available: YES
Beam Angle: 100°
Application: Recessed Mounted
End Caps With Wire Holes And Without Wire Holes Included
LED Strip Lights Sold Separately
5 Years Warranty
Package:
1 set of LED Strip Light Profile
End Caps(With Hole/Without Hole)
Spring Clips
Applications:
Under Cabinets, Wardrobes, Shelves, Wine Shelves, Kitchens, Living Rooms, Patios, Bedrooms, Closets, etc.
Backlighting For Signs, etc.
CE and RoHS approved
