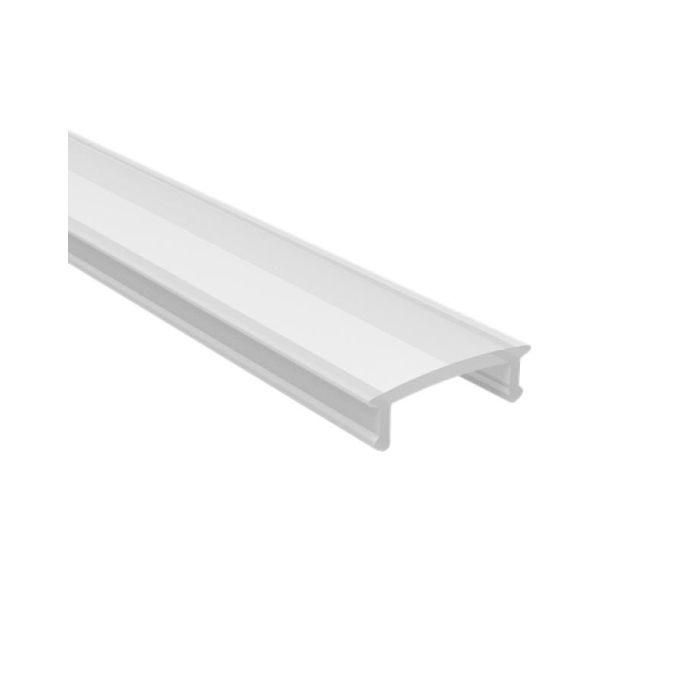

Check the Aluminum Strip Light Channels with long flanges, which can be recessed into the ceiling or drywall for interior
linear lighting. The inner width is 15.2mm and can work with SMD LED Strips or COB LED Tapes, the mad width of the PCB
board can not be over 15mm. LED Strip Channels are made of 6063-T5 extruded aluminum material and with anodized
surface treatment, anti-oxidation resistance, and a longer lifespan than other similar products. There are three colors available:
silver, white or black. The standard length is 1M and the max length is 6M, cuttable and custom lengths are available.
There are two types of diffusers available: PC diffused cover and black PC cover available, both of them are made of imported
brand material, anti-yellowing, and perfect lighting distribution. End caps with wire holes and without holes included, easy to
connect the LED Strips to a Power Supply to light up or a LED Dimmer to adjust the brightness. 90° and 180° connectors are
sold separately, you can purchase them and use them to design the Lighting Project.
Features:
Model: ALP154
Material: 6063-T5 Extruded Aluminum
Surface Treatment: Anodized
Size: 64.1*13mm(W*H)
Colors: Silver(Default), White, Black
Standard Length: 1M
Other Lengths Available: 1.5M, 2M
Custom Length Available: YES
Diffusers: PC Diffused Cover, Black PC Cover
Inner Width: 15.2mm
Can Work With SMD LED Strips Or COB LED Tapes
Max Width Of PCB Board Not Over 15mm
Max Power: 15W/M
Beam Angle: 100°
Tolerance: ±1%
IP Rating: IP20 Non-waterproof
End Caps With Holes/Without Holes Included
90°，90° Vertical Connectors and 180° Connectors Sold Separately

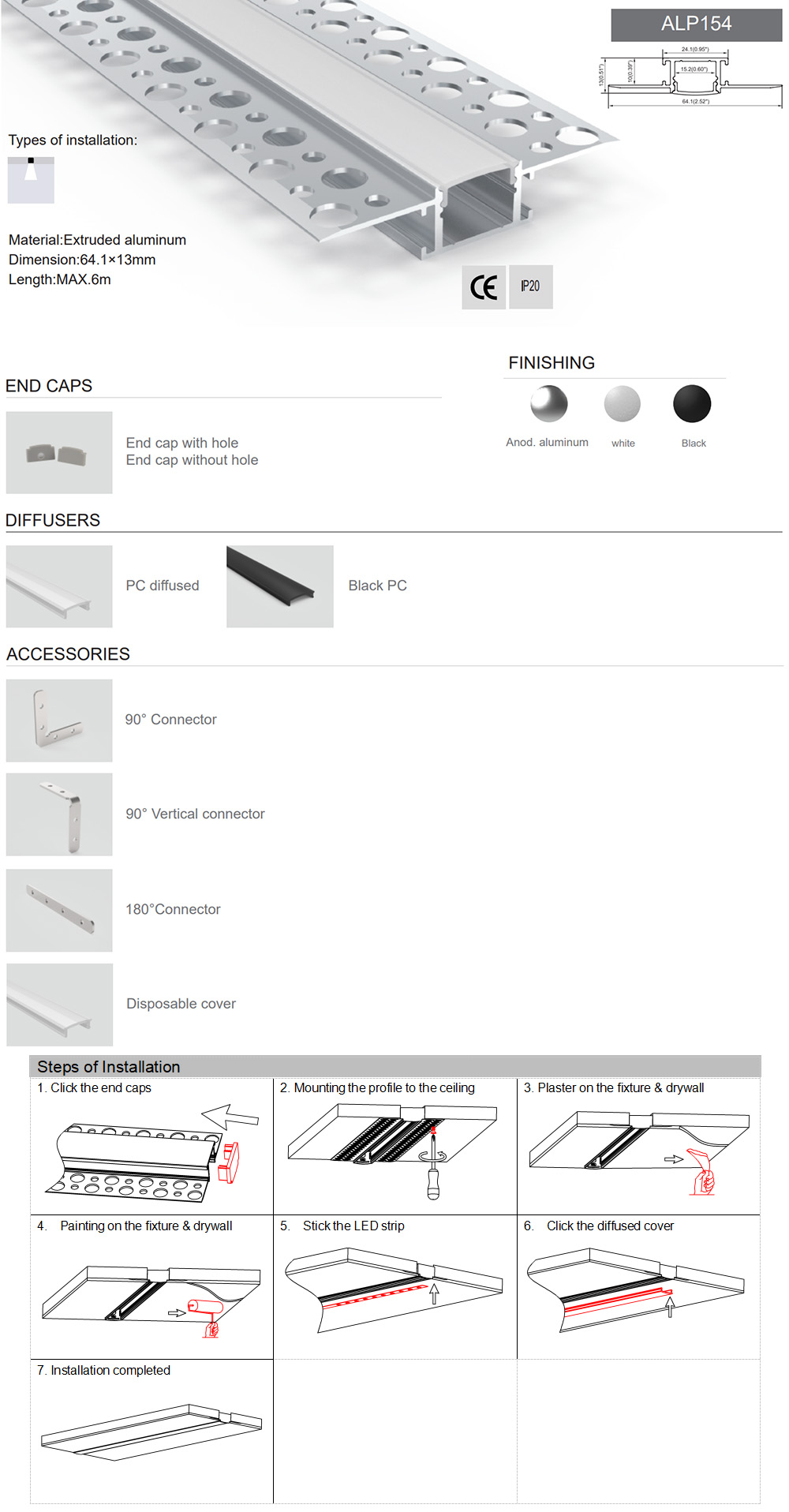

Installation: Recessed
Applications: For Ceiling Or Drywall
5 Years Warranty
Includes:
1 Set of Aluminum Strip Light Channel
End Cap With Hole/Without Hole
CE and RoHS approved
