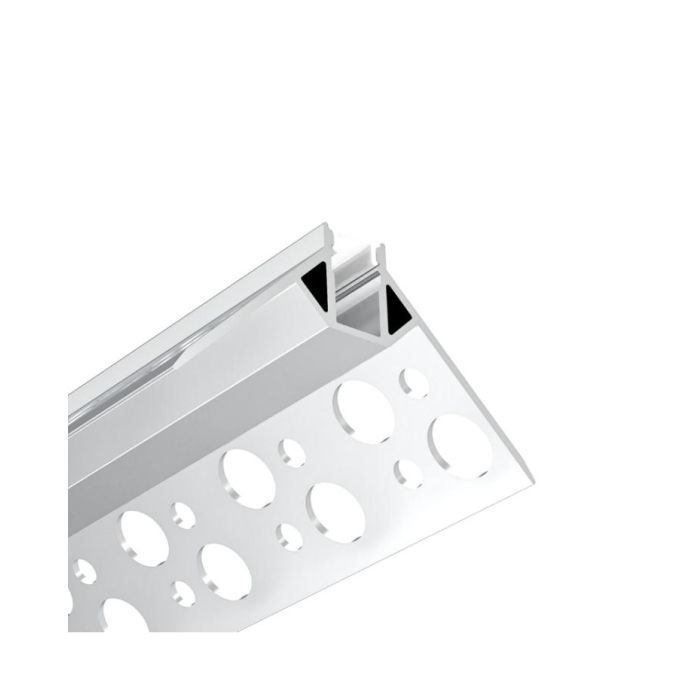

The LED Light Housing with flange, which with a slim and low profile design, can be recessed into the outside corner of the 12.5mm drywall
or plasterboard. The inner width is 5.5mm and allows the max-width of LED Strips is 5mm, recommend installing the 3mm, 4mm or 5mm COB
LED Strips that evenly diffuse light, the compact design allows for a seamless plaster-in installation inside 1/2" drywall without having to modify
framing. Easily recess in walls, ceilings and tight spaces or corners to cast beautiful, diffused and even lighting throughout your space. LED Light
House with flange and the flange with round holes, easy to mount on the wall with screws, plaster, and painting on the drywall. Drywall Housings
are made of 6063-T5 extruded aluminum material and with anodized surface treatment, anti-oxidation resistance and a longer lifespan. Three
colors are available: white, silver, and black colors. The standard length is 1M and 2M, and custom lengths are available. Only one type of diffuser
is available, the PC diffused cover, which is made of imported brand material, anti-yellowing, perfect light distribution and smooth light output. End
caps with wire holes are included, and connecting the COB LED Strip Lights to a LED Driver to light up is easy.
Features:
Model: ALP129-O
Material: 6063-T5 Extruded Aluminum
Surface Treatment: Anodized
Size: 44.1*22.2mm(W*H)
Colors: White, Silver(Default), Black
Standard Length: 1M
Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
Custom Lengths Available: YES
Diffusers: PC Diffused Cover
Inner Width: 5.5mm
Max Width Of LED Strips: 5mm
Max Power Of LED Strips: 10W/M
Beam Angle: 100°
Tolerance: ±1%
IP Rate: IP20 Non-waterproof
End Caps With Wire Holes And Without Wire Holes Included
COB LED Strip Lights Sold Separately
Installation: Recessed Into 12.5mm Drywall Or Plasterboard
5 Years Warranty
Includes:
1 set of Drywall Edge LED Light Housing
End Caps(With Wire Hole/Without Wire Hole)
CE and RoHS approved
