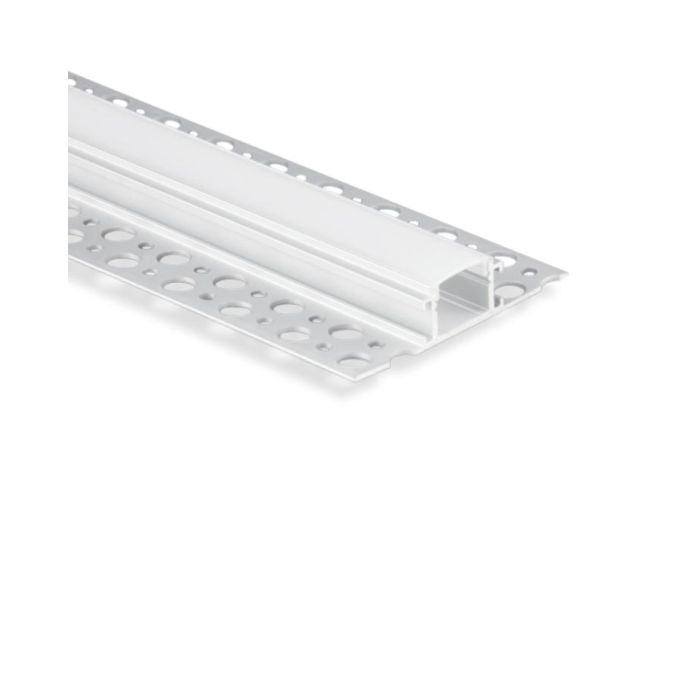

The LED Diffuser Profile with flanges is designed to be used in drywall applications. Can be recessed into the 12.5mm
thick dry wall to fit flush with surrounding drywall surfaces and provide a seamless, elegant look. The LED Profiles are
made of 6063-t5 extruded aluminum material with anodized surface treatment, anti-oxidation resistance, and a longer
lifespan than other similar products. There are three colors available: silver, white and black. The standard length is 1M
and 2M, custom lengths are available. There is only one type of diffuser available: the PC diffused cover, which is made
of imported brand material, anti-yellowing, perfect lighting distribution, and seamless light output. The inner width is
15.2mm and allows the max-width of LED Strips up to 15mm, recommend installing high-density COB LED Strips as the
light source. End caps with wire holes included, easy to connect the LED Strips to a Power Supply to light up or a LED
Dimmer to adjust the brightness. 180° and 90° LED Connectors are sold separately, you can purchase them to reconnect
the LED Profiles for your lighting projects.
Features:
Model: ALP155
Material: 6063-T5 Extruded Aluminum
Colors: Silver(Default), White, Black
Size: 64.1*13.6mm(W*H)
Standard Length: 1M
Other Lengths Available: 0.5M, 1.5M, 2M
Custom Length Available: YES
Diffusers: PC Diffused Cover
Inner Width: 15.2mm
Max Width Of LED Strips: 15mm
Max Power: 15W/M
Can Work With SMD LED Strips And COB LED Tapes
Beam Angle: 100°
Tolerance: ±1%
IP Rating: IP20 Non-waterproof
End Caps With Holes/Without Holes Included
180°, 90° And 90° Vertical Connectors Sold Separately

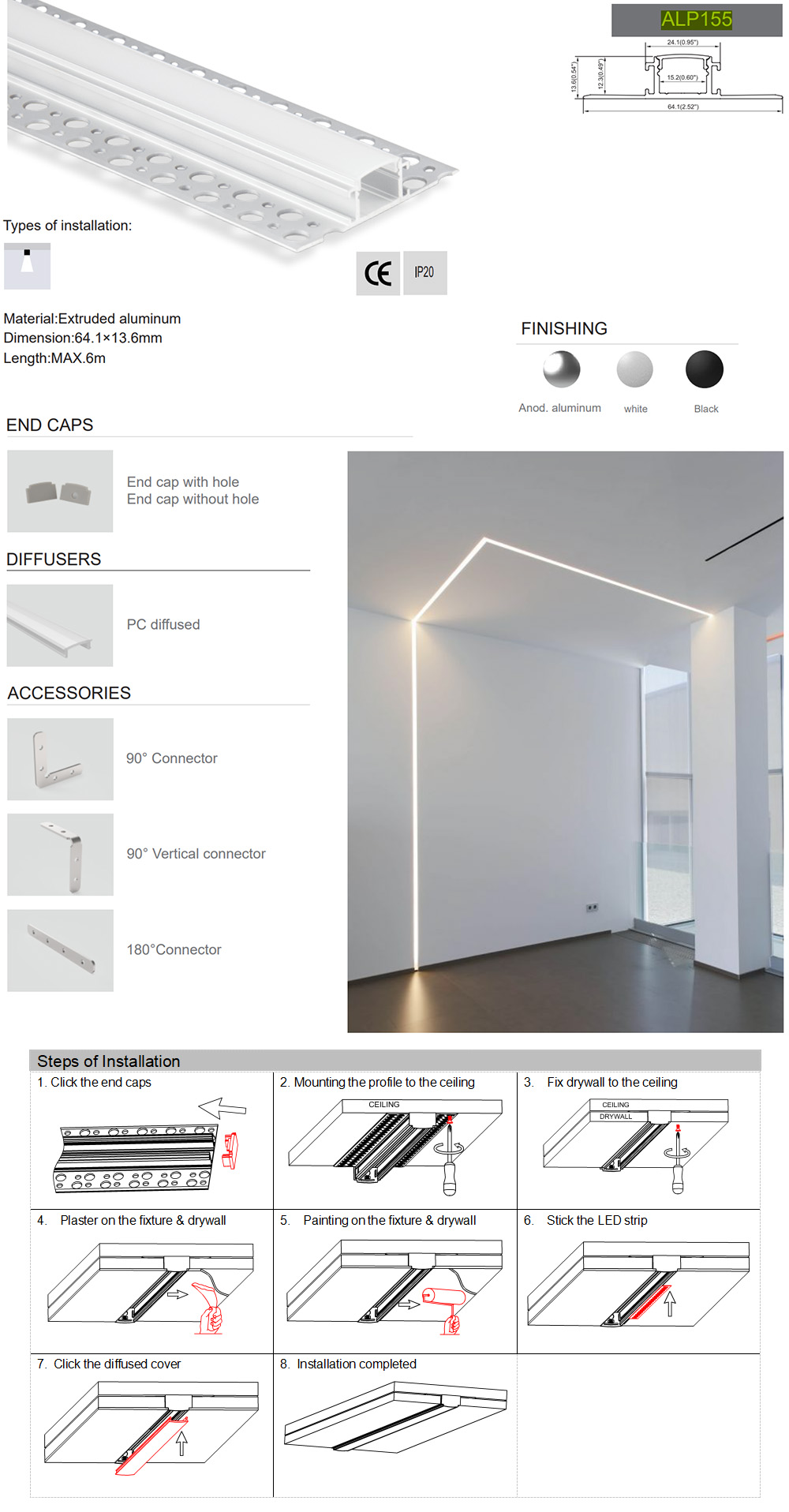

Installation: Recessed Mounting
5 Years Warranty
Includes:
1 Set of LED Diffuser Profile
End Caps With Hole/Without Hole
CE and RoHS approved
