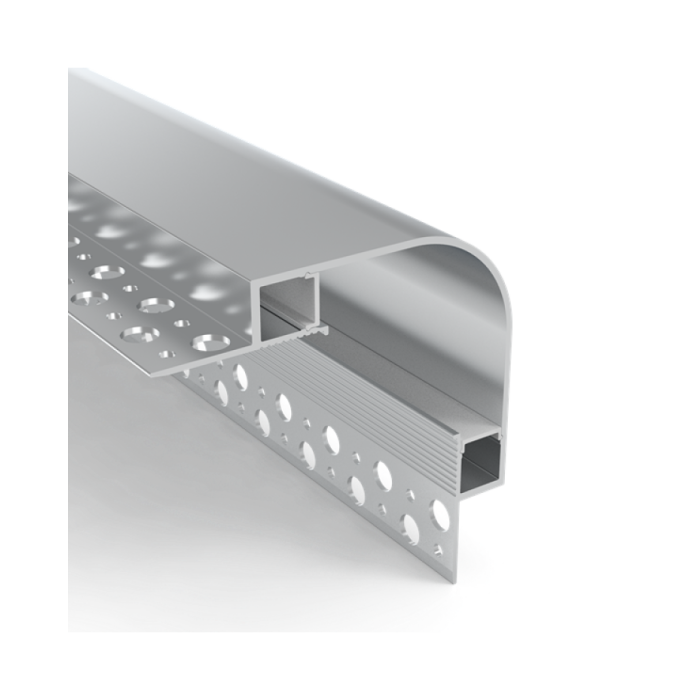

The Recessed Aluminum LED Strip Channels, which can be mounted on 12.5mm drywall and used for recessed linear lighting,
lighting between tiles, corner and wall lighting, etc. Made of extruded 6063-T5 aluminum material and with silver anodized surface
treatment, anti-oxidation resistance, and a longer lifespan than other similar products. The LED Strip Aluminum Channel has three
colors: silver, white and black. The standard length is 1M and 2M, the max length can be 6M, and custom lengths are available.
Only one type of diffuser is available: PC diffused cover, made of imported brand material, anti-yellowing, and perfect lighting distribution.
There are two lighting slots; the inner width is 10.3mm, allowing the max width of COB LED Strip Light Flexible to be 10mm. End caps with
holes and without holes are included, making it easy to connect the LED Tape Light to a Power Supply to light up. Allows the max thickness
of drywall to be up to 12.5mm.
Features:
Model: ALP168
Material: Extruded Aluminum
Surface Treatment: Silver Anodized
Colors: Silver, White(Default), Black
Size: 80*80mm(W*H)
Inner Width: 10.3mm
Can Work High-Density SMD LED Strips Or COB LED Strips(The Width Of PCB Board Not Over 10mm)
Diffuser: PC Diffused Cover
Standard Length: 1M
Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
Custom Length Available: YES
Tolerance: ±1%
IP Rating: IP20 Non-waterproof
End Caps With Hole/Without Hole Included
Installation: Recessed Mounting On 12.5mm Drywall/Plasterboard/Sheetrock
Applications: Cove Lighting
5 Years Warranty
Includes:
1 Set of LED Strip Lighting Channel
End Caps(With Holes / Without Holes)
CE and RoHS approved
