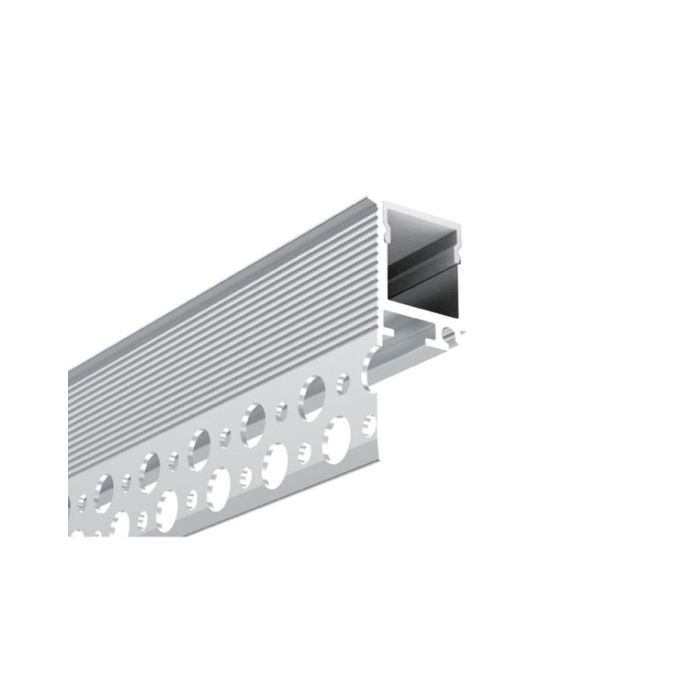

The LED Strip Light Fixtures have a single flange, which can easily be recessed plaster-in the wall or ceiling
for indirect lighting. On the flange with small round holes, easy to plaster and paint on. Made of 6063-T5
extruded aluminum material and with silver anodized surface treatment, anti-oxidation resistance, and
a longer lifespan than other similar products. Three colors are available: silver, white, and black. The
standard length is 1 meter per piece; the max length can be 6M and cuttable. You can cut to any length
for your project, and custom lengths are available. Only one type of diffuser is available: PC diffused cover,
which is made of brand-stable material, anti-yellowing, perfect light distribution, and smooth light output. The
inner width is 13.9mm, allowing the max width of LED Strips to be 13mm. Recommend installing the high-density
dotless COB LED Strip Lights as the light source, with no visible light dots and dark areas, brighter and uniform
light emission. Two types of LED Profile Connectors are available: 90° vertical connectors and 180° connectors.
You can use them to reconnect the Ceiling Up LED Strip Light Extrusions for longer lengths or corner installation.
End caps with wire holes are included, and it is easy to connect the LED Strips to the LED Driver or Light Dimmer
to light up or adjust the brightness for various scenes.
Features:
Model: ALP084-S
Size: 42.5*19.5mm(H*W)
Material: Extruded Aluminum
Surface Treatment: Anodized Silver
Colors: Silver(Default), White, Black
Standard Length: 1M
Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
Custom Length Available: YES
Inner Width: 13.9mm
Max Width Of LED Strips: 13mm
Max Power: 12W/M
Diffusers: PC Diffused Cover
Beam Angle: 100°
180° And 90° Vertical Connectors Sold Separately
End Caps With Wire Hole And Without Wire Hole Included
Tolerance: ±1%
Installation: Plastered In Wall Or Ceiling
Applications: Indirect Lighting, Cove Lighting, Baseboard Lighting
5 Years Warranty
Includes:
1 set of LED Strip Light Fixture With Diffuser
End Caps(With Wire Hole/Without Wire Hole)
CE and RoHS approved
