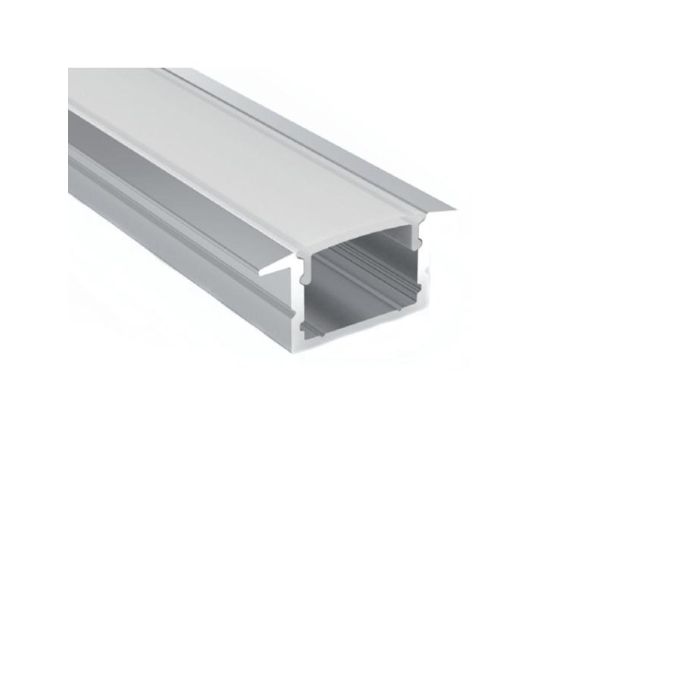

Check the 12mm Deep Recessed Light Strip Channel with flanges, which can be recessed into the wall or ceiling for indoor
linear lighting. They are made of 6063-T5 extruded aluminum material with an anodized finish, anti-oxidation resistance,
and a longer lifespan than similar products. Silver, black, and white colors are available. The standard length is 1M and
2M, and custom lengths are available. The inner width is 15.2mm, which allows the maximum width of LED Strips to be
15mm. Recommend installing the high-density COB LED Strip inside as the light source, with no visible light dots and dark
areas, uniform light emission, to create seamless linear lighting on the wall for indoor decoration. Various LED Light Diffusers
are available for different lighting transmissions, made of brand materials, anti-yellowing, perfect light distribution, and
smooth light output. End caps with wire holes included, easy to connect the LED Strips to LED Driver or Light Dimmer to light
up or adjust the brightness.
Features:
Model: ALP149
Material: 6063-T5 Extruded Aluminum
Surface Treatment: Anodized Finish
Colors: Silver(Default), Black, White
Size: 18.5*12mm(W*H)
Standard Length: 1M
Other Lengths Available: 1.5M, 2M, 3M And Max 6M
Custom Length: YES
Inner Width: 15.2mm
Max LED Strips Width: 15mm
Max Power: 15W/M
Diffusers: PC Diffused Cover, PC Semi-clear Cover, PC Clear Cover, PC Frosted Cover, Prismatic Cover
Beam Angle: 100°
Tolerance: ±1%
Installation Method: Recessed
Applications: Wall Lighting
5 Years Warranty
Includes:
1 set of Light Strip Channel With Diffuser
1 set of End Caps(With Wire Hole And Without Wire Hole)
CE and RoHS approved
