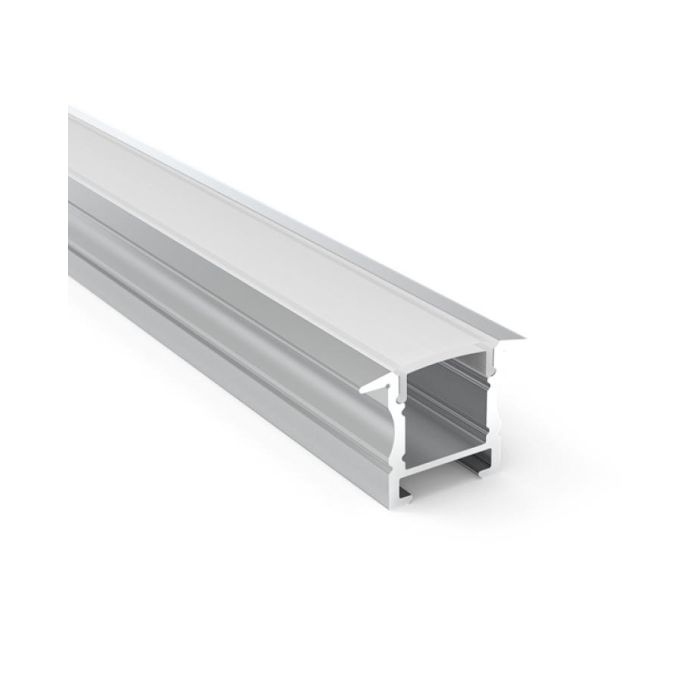

Check the Aluminum Track For LED Strip Lighting with flanges, which can be recessed into the ceiling or wall for interior linear lighting.
Made of 6063-T5 extruded aluminum material and with anodized surface treatment, anti-oxidation, and a longer lifespan than similar
products. There are 3 colors available: silver, white and black. The standard length is 1M and 2M, and custom lengths are available.
Six types of diffusers are available: the PMMA series and PC series. All are made of imported brand material, anti-yellowing, and
perfect lighting distribution. The inner with is 12.3mm and can work with Flexible SMD LED Strips or COB LED Light Strips; the max
width of the PCB board is 12mm. End caps with holes and without holes make it easy to connect the LED Strip Lighting Track to a power supply to light up.
Features:
Model: ALP145
Material: 6063-T5 Extruded Aluminum
Size: 17.1*18.5mm(W*H)
Surface Treatment: Anodized
Colors: Silver(Default), White, Black
Standard Length: 1M
Other Lengths Available: 1.5M, 2M
Custom Length Available: YES
Inner Width: 12.3mm
Max Width Of LED Strips: 12mm
Max Power: 18W/M
Diffusers: PMMA Opal Matte Cover, PMMA Semi-Clear Cover, PMMA Clear Cover, PC Diffused Cover, PC Semi-Clear Cover, PC Clear Cover
Beam Angle: 100°
Tolerance: ±1%
IP Rating: IP20 Non-waterproof
End Caps With Holes/Without Holes Included
Spring Clips Included
90°, 90° Vertical, 135°, 135° Vertical And 180° Connectors are Sold Separately
Installation: Recessed Mounting
5 Years Warranty
Includes:
1 set of Aluminum Track With Diffuser
End Caps (With Hole/Without Hole)
Spring Clips
CE and RoHS approved
