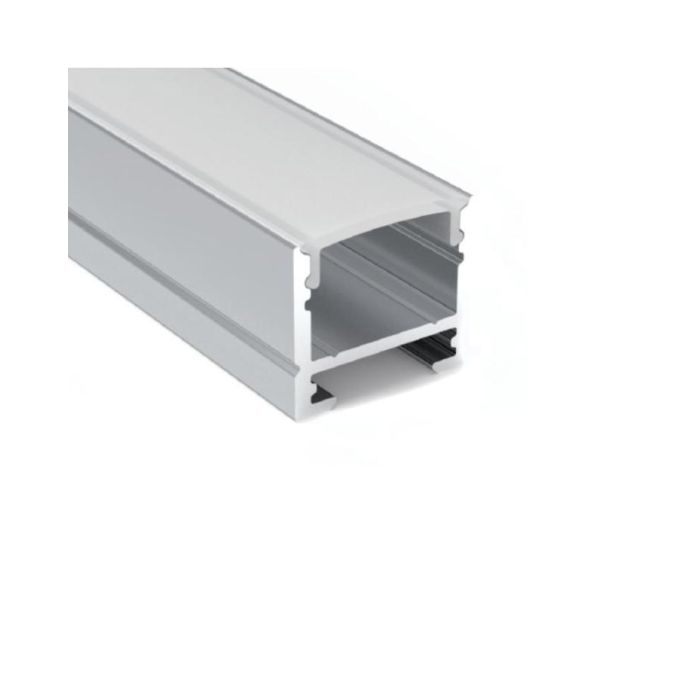

Check the LED Linear Fixtures, which can be cut to any length for indoor linear lighting projects. You can use them
for linear lighting on the metal wall or metal ceiling. Lighting Fixtures are made of 6063-T5 extruded aluminum material.
There are three colors available: silver, white and black. The standard length is 1M and 2M, LED Linear Fixtures with
anodized surface treatment, anti-oxidation, and a longer lifespan than similar products. Various diffusers are available,
and you can choose the PC diffused cover, PC semi-clear cover, PC clear cover, PC frosted cover, and prismatic cover.
The Linear Light Fixture Diffusers with different light transmittance can be used for various scenes. The inner width is
15.2mm, allowing the max width of LED Strips to be 15mm. Recommend using the high-density chip-on-board COB
Light Strips as the light source, with no visible light dots and dark areas, brighter and uniform lighting emission. End
caps with wire holes are included, and it is easy to connect the LED Strips Dimming LED Drivers to light up and adjust
the brightness. Lighting Linear Fixtures come with magnets, and you can insert the magnets into the slots and stick the
Linear Fixture on the metal or magnetic wall. There is no need to drill holes or stick double-sided tapes; easy to install and use.
Features:
Model: ALP152
Material: Extruded Aluminum
Surface Treatment: Anodized
Colors: Silver(Default), Black, White
Size: 18.5*16mm(W*H)
Standard Length: 1M
Other Lengths Available: 1.5M, 2M, 2.5M, And Max 6M
Custom Length Available: YES
Diffusers: PC Diffused Cover, PC Semi-clear Cover, PC Clear Cover, PC Frosted Cover, Prismatic Cover
Inner Width: 15.2mm
Max Width Of LED Strips: 15mm
Max Power: 18W/M
Beam Angle: 100°
Tolerance: ±1%
Magnets Included
End Caps With Wire Holes Included
Adjustable Brackets Sold Separately
180°, 90°， 90° Vertical, 135° And 135° Vertical Connectors Sold Separately
Installation: Surface Mounted
Applications: Wall Or Ceiling Linear Lighting
5 Years Warranty
Includes:
1 set of LED Linear Fixture With Diffuser
ABS End Caps With Wire Hole/Without Wire Hole
Magnets
CE and RoHS approved
