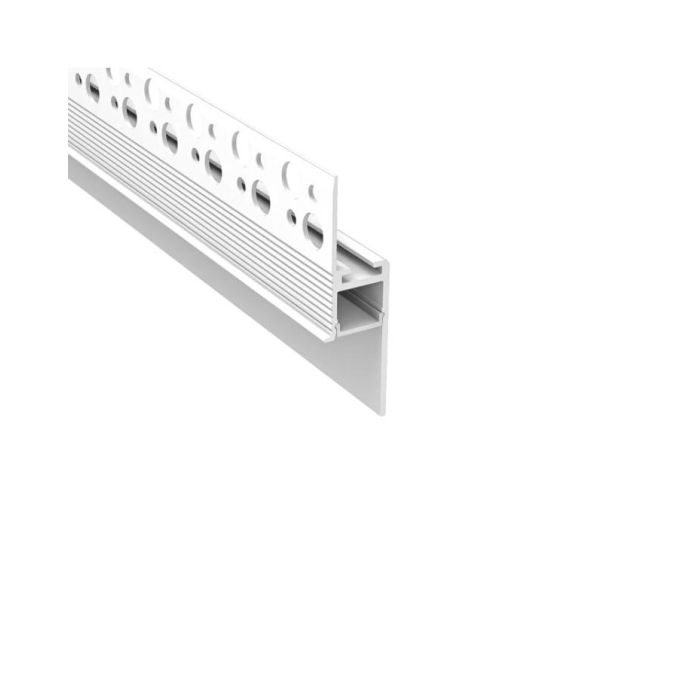

The Trimless Aluminum Wall Skirting Board LED Channels, which can be recessed into 12.5mm drywall, create
a warm baseboard lighting atmosphere in residential or business. The Aluminum Profiles are made of 6063-T5
extruded aluminum material with anodized surface treatment, anti-oxidation resistance, and a longer lifespan.
There are three colors available: white, silver, and black. The standard length is 1M and 2M, and you can cut to
any size you want, custom lengths are available. Only one type of diffuser is available: the PC diffused cover, which
is made of brand-imported material, anti-yellowing, perfect light distribution, and smooth light output. The inner
width is 10.3mm, allowing the maximum width of LED strips to be 10mm. Recommend installing the COB LED Strip
Lights as the light source, creating a seamless linear lighting effect without visible light dots and dark areas. The
aluminum base can be used as a heat sinker for better heat dissipation, extending the lifespan of Strip Lights. End
Caps with wire holes and without wire holes are included. Connecting the LED Strips to the LED Driver to light up
or the Lighting Dimmer to adjust the brightness freely is easy. Three types of connectors are available: 90°, 90° vertical,
and 180° LED Couplers, and you can use them to reconnect the LED Skirting Board Channels for various shape designs.
Features:
Model: ALP187
Material: 6063-T5 Extruded Aluminum
Surface Treatment: Anodized
Colors: White
Size: 75*14.5mm(H*W)
Standard Length: 1M
Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
Custom Lengths Available: YES
Diffusers: PC Diffused Cover
Inner Width: 10.3mm
Max Width Of COB LED Strips: 10mm
Max Power: 15W/M
Beam Angle: 100°
Tolerance: ±1%
IP Rate: IP20 Non-waterproof
90°，90° Vertical And 180° Connectors Sold Separately
End Caps With Wire Hole/Without Holes Are Included
Installation: Recessed
Application: Wall Skirting Board Lighting
5 Years Warranty
Includes:
1 set of Wall Skirting Channel
End Caps(With Hole/Without Hole)
CE and RoHS approved
