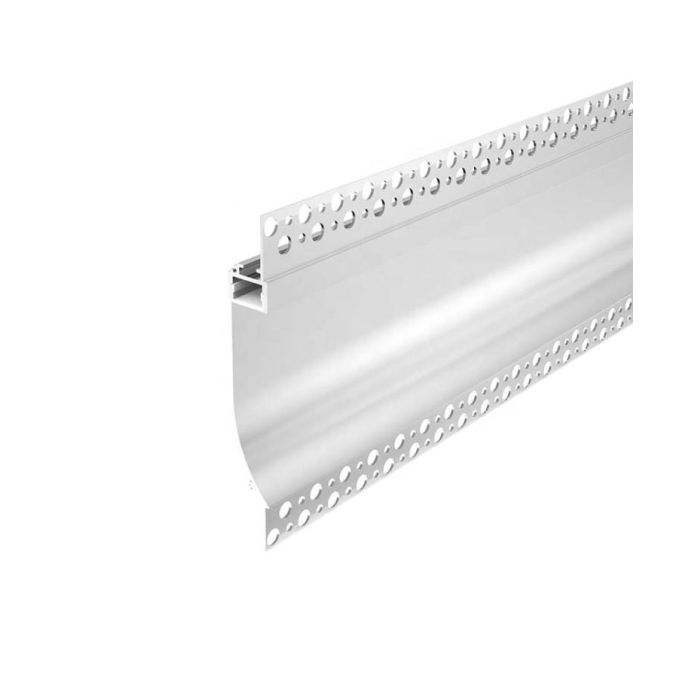

The LED Strip Channel with flange is perfect for Baseboard Lighting. They are designed to be recessed into the 5/8" Gypsum
Boards in ceilings or walls without the visibility of trim, giving a seamless look to the space. A large reflective area is designed to
allow light to shine indirect light onto the ceiling, wall, or floor. The flange on the channel makes flush mount installation easier
and more secure. The Drywall Sheetrock LED Channel is made of high-quality 6063-T5 aluminum alloy material with a white
powder-coated surface treatment, anti-oxidation resistance, and a longer lifespan than similar products. The standard length
is 1M and 2M, and can be cut to any length that fits your need. The inner width is 13.9mm, allowing the max width of Strip Lights
to be 13mm. Recommend adding high-density of SMD LED Strips or LED COB Tapes as the light source without any visible light dots.
There is only one type of diffuser available: the PC diffused cover, which is made of brand material with stable quality, anti-yellowing,
and provides even, soft, and uniform Skirting Board lights in the ceiling, wall, or footline. There are three types of connectors available:
90°, 90° vertical, and 180°, you could purchase them to reconnect the Gypsum LED Channels together for DIY shape design.
Features:
Model: ALP086
Material: 6063-T5 Aluminium Alloy
Surface Treatment: White Powder Coated
Colors: Silver, White(Default), Black
Size: 133.8*18.5mm
Inner Width: 13.9mm
Allows The Max Width Of Strip Lights To Be 13mm
Standard Length: 1Meter
Other Lengths Available: 0.5Meter, 1.5Meter, 2Meter, 2.5Meter, 3Meter
Custom Length Available: YES
End Caps Included
Diffusers: PC Diffused Cover
90°, 90° Vertical, And 180° Connectors Sold Separately
Installation: Recessed
Usage: Recessed Into 5/8" Sheetrocks In Ceilings Or Walls
5 Years Warranty
Includes:
1 set of Gypsum LED Strip Channel With Diffuser
End Caps
CE and RoHS approved
