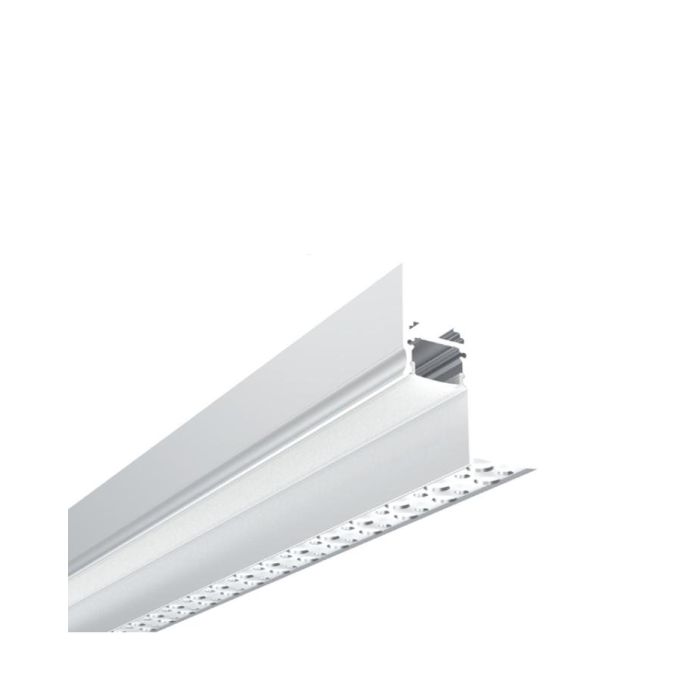

The trimless recessed Shadow Line LED Channels with low glare design ensure that the Ceiling Perimeter Lighting is evenly distributed without
causing discomfort or glare to the eyes, you can create an elegant and smooth line of light without visible edges. This makes them perfect for
spaces where a soft and diffused lighting effect is desired, such as living rooms, dining areas, bedrooms, etc. LED Mounting Channels are made
of 6063-T5 extruded aluminum material, with silver anodized and white-coated treatment, anti-oxidation, and a longer lifespan than similar products.
White, silver, and black colors are available. The standard length is 1M, the max length can be 6M, and it can be cut to any size for your project.
Three types of diffusers are available for different lighting effects. You can choose a PC diffused cover, Semi-clear cover, and prismatic cover, all
of them are made of brand-stable material, anti-yellowing, perfect light distribution, and smooth light output. The inner width is 13.5mm, allowing
the max width of LED Strips to be 12mm. Recommend installing high-density Dotless COB LED Strips as the light source, no visible light dots and
dark areas, quality color rendering, and brighter and uniform light emission. Two types of connectors are available: 90° and 180° connectors. You
can use the Shadow Line Profile connectors to reconnect them for longer lengths or corner installation. End caps with wire holes are included, making
it easy to connect the LED Light to the LED Power Supply to light up.
Features:
Model: ALP159-TR
Material: 6063-T5 Extruded Aluminum
Surface Treatment: Silver Anodized
Size: 40.7*51mm(W*H)
Colors: White(Default), Silver, Black
Standard Length: 1M
Other Lengths Available: 1.5M, 2M, 2.5M, 3M And Max 6M
Custom Length Available: YES
Diffusers: PC Diffused Cover, Semi-clear Diffused Cover, Prismatic Cover
Inner Width: 13.5mm
Max Width Of LED Strips: 12mm
Max Power: 18W/M
Beam Angle: 100°
180° And 90° Connectors Sold Separately
End Caps With Wire Hole And Without Wire Hole Included
Installation: Recessed And Plaster-in
Applications: Shadow Line / Perimeter Lighting
5 Years Warranty
Includes:
1 set of Shadow Line Lighting Channel With Cover
End Caps With Wire Hole/Without Wire Hole
CE and RoHS approved
