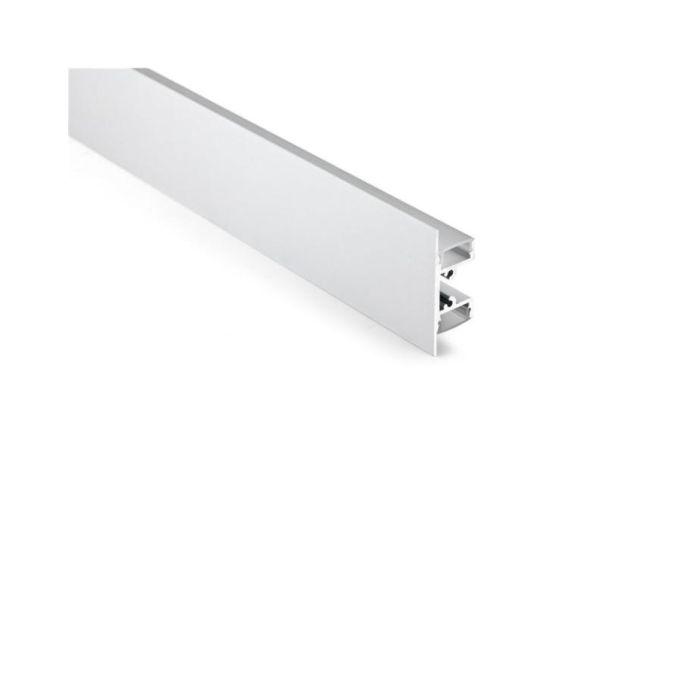

The Aluminium LED Strip Housing has 2 slots in Up and Down directions and can illuminate the up and down areas
on the wall simultaneously, creating a warm and cozy atmosphere or a bright and vibrant ambiance. The width of the
slot is 12.2mm and allows the max width of Strip Lights to be 12mm. Recommend adding high-density COB Strip Lights
as the light source, with no dark area and light dots, to create a seamless light line. The Aluminum Houses are made of
6063-T5 aluminum alloy material and with silver anodized surface treatment with a longer lifespan and a better anti-oxidation
feature than other similar products. The default length is 2 meters; you can cut to any length you want. There are 3 different
diffusers available: the PC Opal Matte Cover, PC Semi-clear Cover, and PC Clear Cover. You can choose them for the different
lighting transmittance. The Light Diffusers are made of brand material from Japan with stable quality, anti-yellowing, and perfect
light distribution. End caps with wire holes and without wire holes included, you can connect the LED Strip Lighting with the LED
Power Supply to light them up or connect them with an LED Dimmer to adjust the brightness. The metal clips are included to
mount the LED Housing on the walls easily.
Features:
Model: ALP050
Material: Aluminum Alloy(6063-T5)
Surface Treatment: Silver Anodized
Colors: Silver, White, Black
Size: 17.7*48.5mm(W*H)
Diffusers: PMMA Opal Matte Cover, PMMA Semi-Clear Cover, PMMA Clear Cover, PC Diffused Cover
Default Length: 1Meter
Other Lengths Available: 1.5M, 2M, 2.5M, 3M
Custom Length Available: YES
Inner Width: 12.2mm
Compatible With COB, 3528, 5050, 2835 LED Strips
Max Power: <15W/Meter
Installation: Wall Mounted
Applications: For Wall Light, Light From Up And Down Direction
5 Years Warranty
Includes:
1 set of Aluminium LED Strip Housing
End Caps(With Wire Hole/WIthout WIre Hole)
Metal Clips
CE and RoHS approved
