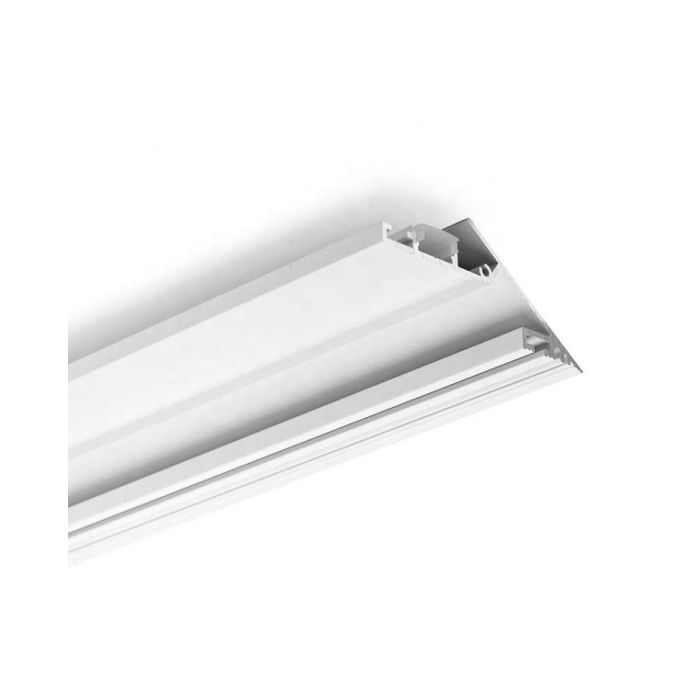

The White Plaster-In Aluminium Profiles are an ideal choice for Interior Soffit Lighting and provide an aesthetically pleasing way to install
LED Strips within a soffit area. Those Surface Profiles can be seamlessly integrated into the surrounding ceiling, creating a clean and polished
look. Whether used in residential or commercial settings, they will provide a sophisticated and modern lighting solution. The Drywall Profiles
are made of 6063-T5 aluminum alloy material with silver anodized surface treatment, anti-oxidation resistance, durability, and long-lasting,
helping to ensure that the LED Strips are secure and protected from damage. The standard length is 1M and 2M and can be cut to any length
for your projects. There is only one type of diffuser available: PC diffused cover, which is made of brand-stable material, anti-yellowing, helps
to diffuse the light, providing a soft, even glow. The diffuser with a clip-in design, is easy to install and maintain. The Aluminum Profiles can be
used as heat sinkers for better heat dissipation and a longer LED Lights' lifespan. The inner width is 13.3mm, allowing the max-width up of Strip
Lights to 13mm. Recommend adding high-density COB Strip Lights as the light source without visible light dots. End caps are included, and 180°,
90°, and 90° vertical are sold separately; you can use them to reconnect the Plaster-In Profiles and for DIY designs. The Soffit Lighting Profiles can
be recessed into 5/8" drywall and can be used to create a perfect ambient atmosphere.
Features:
Model: ALP091-E
Material: 6063-T5 Aluminium Alloy
Surface Treatment: Silver Anodized
Colors: Silver, Black, White(Default)
Size: 73.2*30.2mm
Inner Width: 13.3mm
Allows The Max Width Of Strip Lights To Be 13mm
Max Power: <15W/Meter
Standard Length: 1Meter
Other Lengths Available: 1.5Meter, 2Meter
Custom Length Available: YES
Diffusers: PC Diffused Cover
90°, 90° Vertical And 180° LED Channel Couplers Sold Separately
Installation: Recessed Into 1/2" Drywall
Application: Interior Soffit Lighting
5 Years Warranty
Includes:
1 set of Soffit Lighting Profile With Diffuser
End Caps
How To Install:
1. Install The LED Strips Inside The Drywall Plaster Aluminum Profiles.
2. Click the Diffuser Into The LED Profiles.
3. Fix The End Caps With Screws.
4. Put The Alu Light Profiles On The 1/2" Drywall.
5. Fix The Aluminum Profiles With Screws.
6. Plaster-In.
7. Brush Painting.
CE and RoHS approved
